Trek

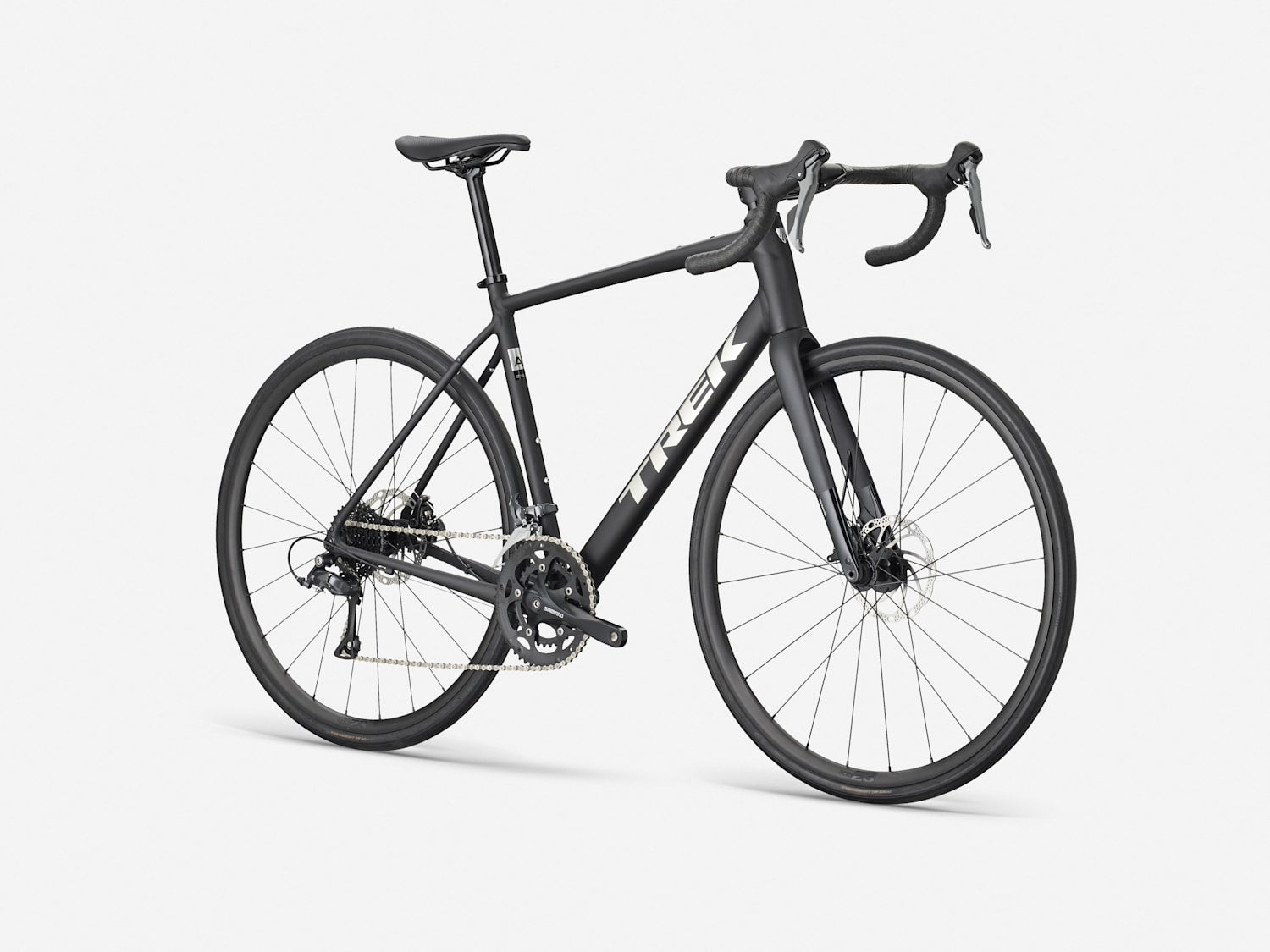

2027 | Domane AL 2 Gen 4

$1,499.99

Shipping calculated at checkout.

Color: Matte Dark Star Black

Size: 49cm

49cm 52cm 54cm 56cm 58cm 61cm

SKU:DOM29949329K

Why Buy a Bike From The Bike Shop?

15% off Parts & Accessories
When you buy a bike at The Bike Shop, you get 15% off of parts and accessories for the first 30 days following your bike purchase. The discount will automatically apply in the checkout at the time of purchase with your bike. This excludes items already marked down and some brands.

Service Plan
If you're local to Calgary or Canmore, you also get one complimentary complete tune-up within the first 16 months of owning the bike. Also included is a lifetime of unlimited service checks to keep you informed on the overall condition of your bike.

After Purchase Support
You're not on your own after you buy a bike from us. We have a dedicated e-comm team that is here to assist if you need help with anything. We also created video tutorials on how to unbox your bike when it arrives and get it ready to read.

Shipping & Returns

We care about your bike. We understand the excitement of unboxing a brand new bike and make sure you get the best experience when receiving your new bike.

Canadian shipping charges:

Sale bikes: $200
Standard pedal bikes over $1250: Free
Standard pedal bikes under $1250: $100
Electric bikes: $200
Fat bikes: $200
Kid's bikes: $60

Insurance charge: 1.5% insured value

We are currently offering gift cards to partially offset the price of shipping a bike! Visit our shipping page for more details

Cargo bikes:
Due to the size of the box that cargo bikes ship in, we are unable to ship cargo bikes directly to your address. Cargo bikes are shipped to a Manitoulin Depot for you to pick-up. For more detail, visit our shipping page.

Bike Specifications

Specifications are subject to change without notice

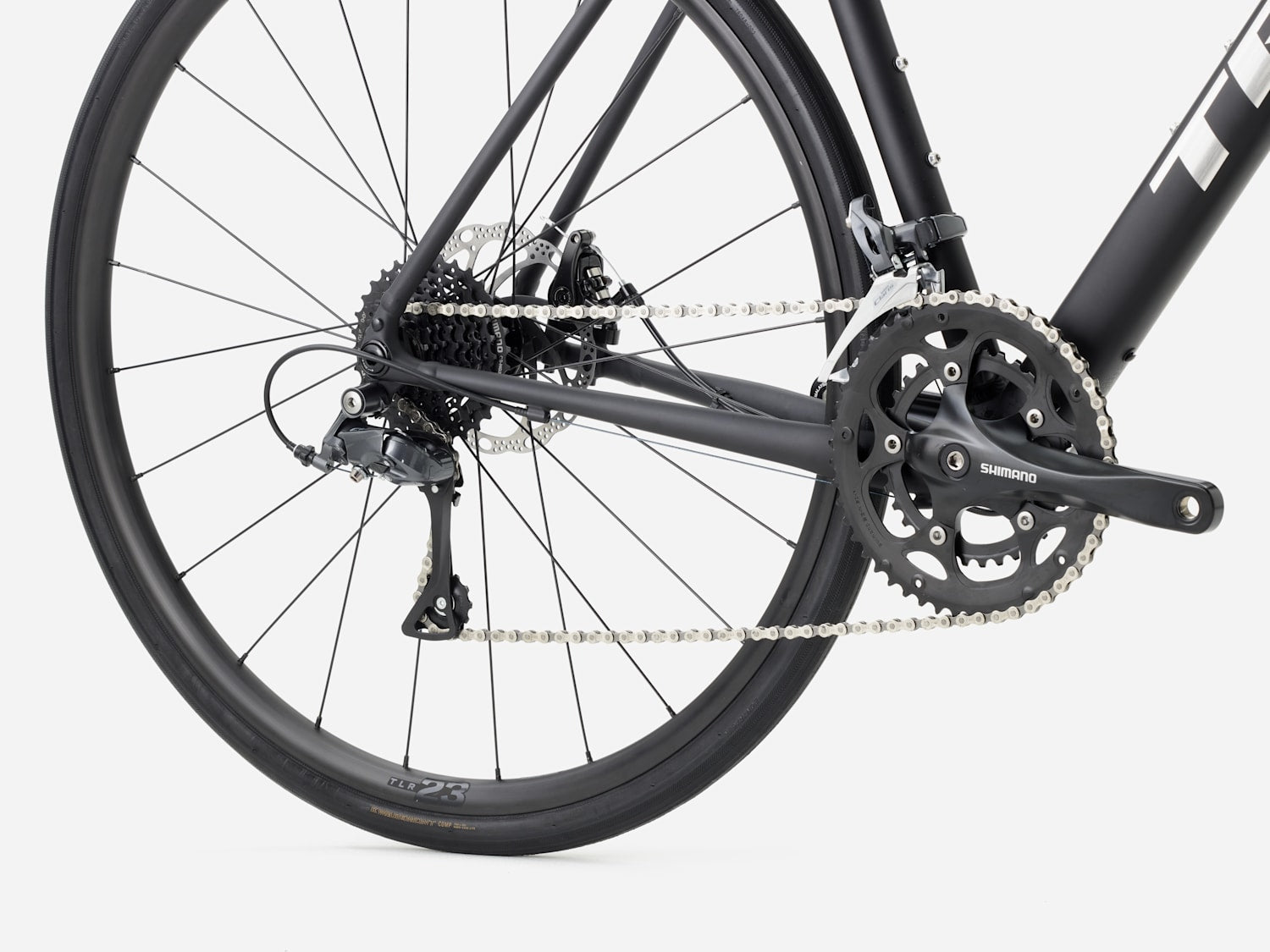

Drivetrain

Cassette Shimano HG31, 11-32, 8 speed

Chain Shimano Sora HG71, 8 speed

Crankset Shimano RS200, 50/34

Front derailleur Shimano Claris R2000, 31.8 mm clamp

Rear derailleur Shimano Claris R2000, medium cage, 34T max cog

Shifter Shimano Claris R2000, 8 speed

Brakes

Brakeset Tektro C550 mechanical disc brake, dual piston, flat mount

Brake rotor Tektro wave, 6-bolt, 160mm

Brake type Mechanical disc

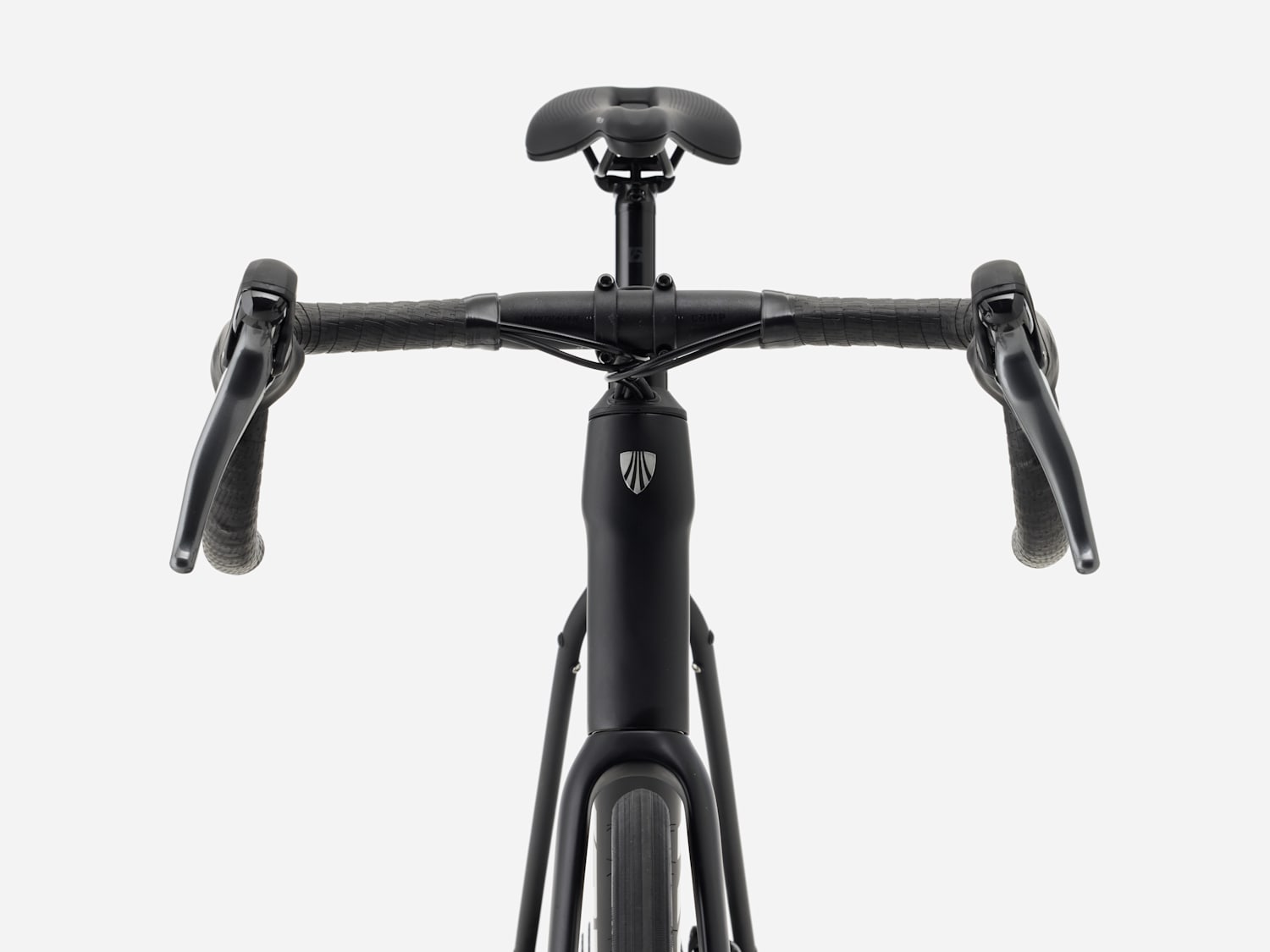

Cockpit

Grips tape Trek gel cork

Handlebars Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop

Saddle Verse Short, steel rails, 145mm width

Seatpost Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset

Stem Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree

Wheels

Front hub Formula RX-512 alloy, 6-bolt, 100x12mm thru axle

Rear hub Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12mm thru axle

Rims Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23mm width, Presta valve

Tires Bontrager Kwaremont Comp, Hardcase Lite, wire bead, 60 tpi, 700x32mm

Wheel size 700c

Suspension

Fork Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle

Fork brand Trek

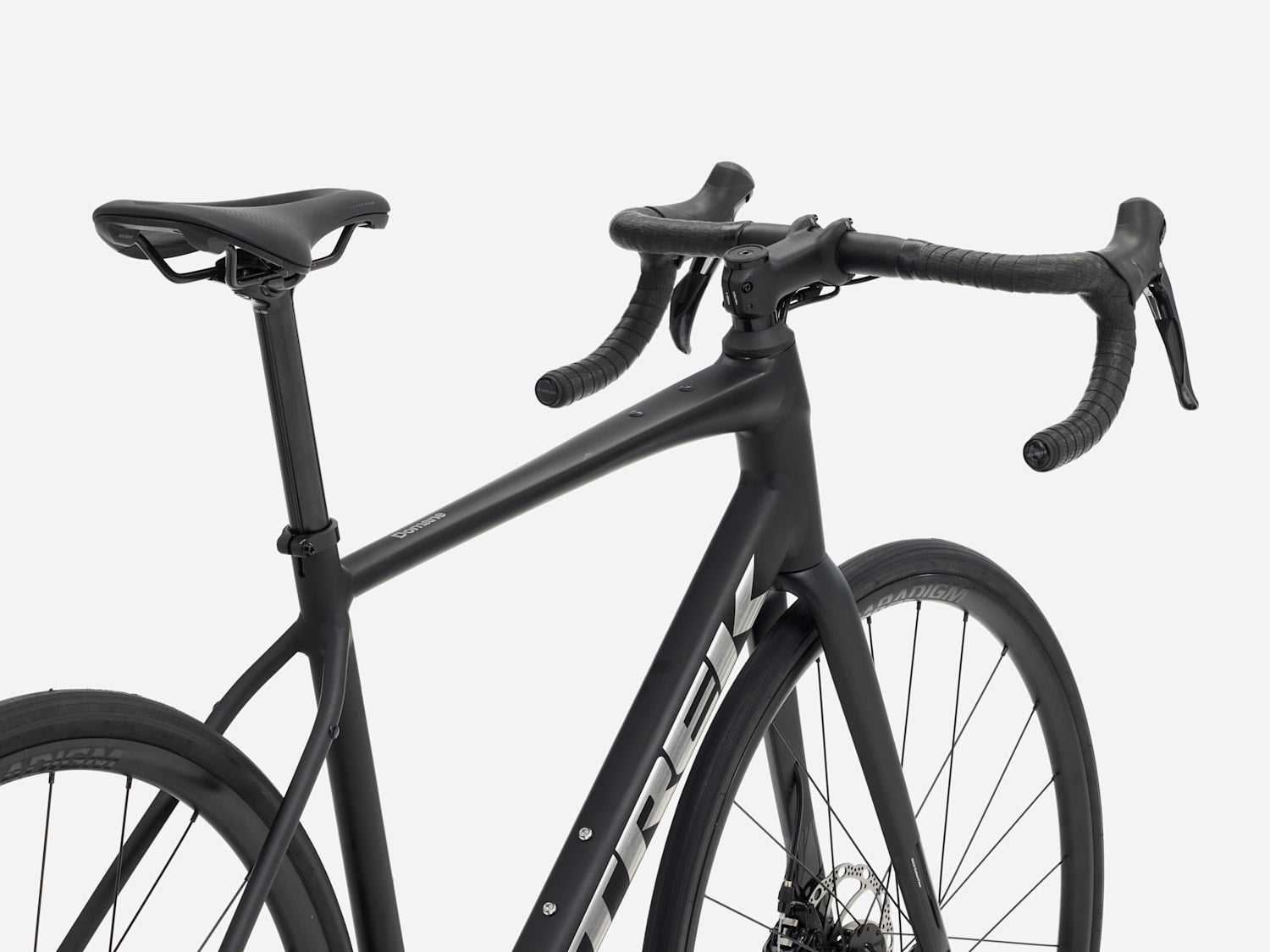

Frame

Bottom bracket Shimano UN300, 68mm, threaded cartridge, 110mm spindle

Frame 100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, flat mount disc, UDH, 142x12mm thru axle

Frame material Aluminum

Platform wheel size 700C

Seatpost Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length

Weight as spec d 56 - 9.80 kg / 21.61 lbs

Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

Description

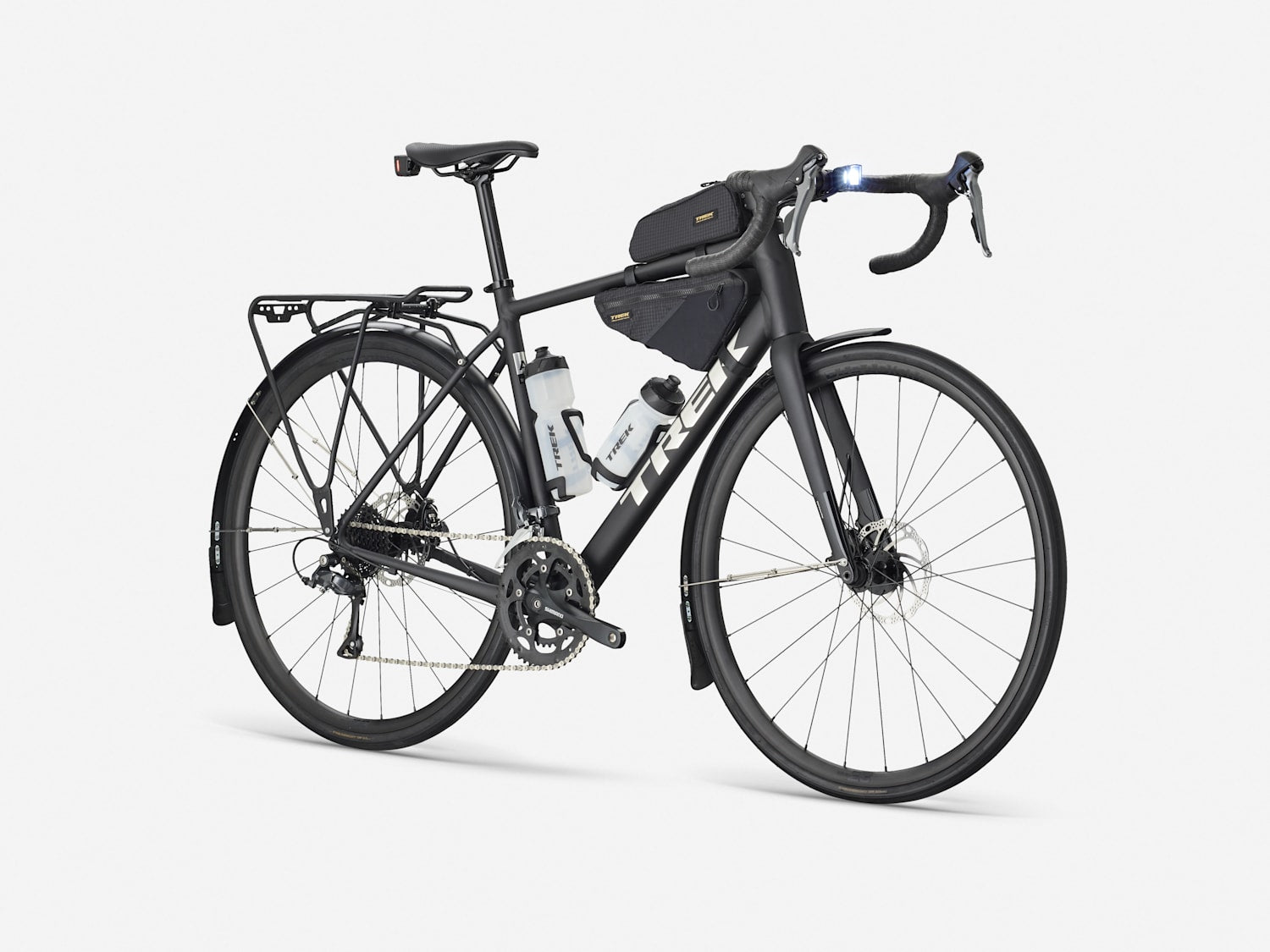

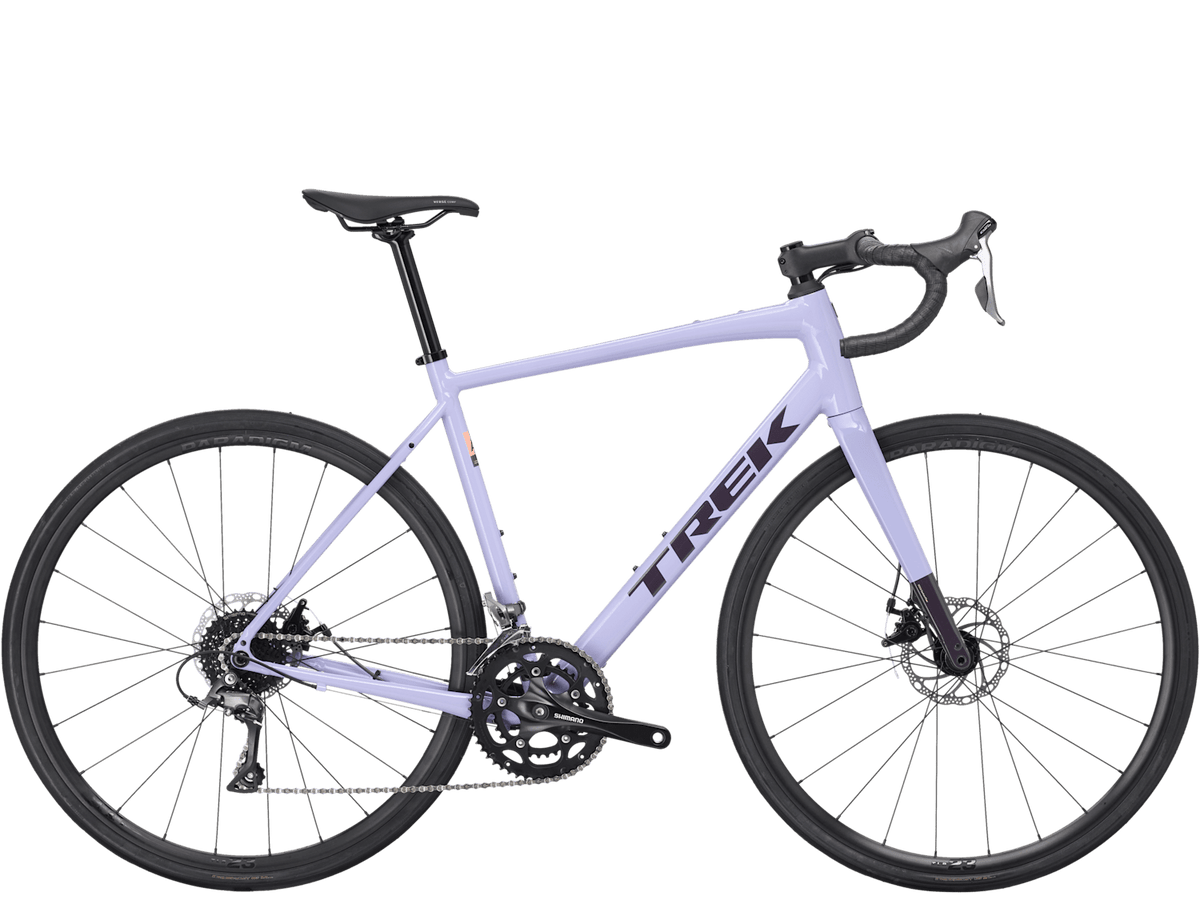

Domane AL 2 is a lightweight road bike built for new riders who want speed, versatility, and confidence on the road. It features an Alpha Aluminum frame, an 8-speed Shimano Claris drivetrain, and a comfortable all-day geometry that’s great for group rides, fitness riding, or fast commutes. Rack, fender, and top tube mounts add everyday utility, and clearance for larger tires means you can venture off the pavement onto light gravel.

Geometry Chart

Measurement	44cm	49cm	52cm	54cm	56cm	58cm	61cm
Reach (mm)	360	368	371	374	377	380	385
Stack (mm)	510	540	561	575	591	611	646
Head Tube Angle (°)	70.3°	70.8°	71.3°	71.3°	71.9°	72.0°	72.1°
Seat Tube Angle (°)	74.6°	74.6°	74.2°	73.7°	73.3°	73.0°	72.7°
Wheelbase (mm)	983	1001	1003	1010	1018	1022	1038
Chainstay Length (mm)	420	425	420	420	420	425	425
Head Tube Length (mm)	95	123	145	160	175	195	235
Seat Tube Length (mm)	390	440	475	500	525	548	576
BB Drop (mm)	80	80	80	80	78	78	75
Rake (mm)	53	53	53	53	48	48	48
Trail (mm)	7	7	6	6	6	6	6
Axle to Crown (mm)	510	540	561	575	591	611	646

Part Numbers

Size	Matte Dark Star Black
49cm	SKUDOM29949329K UPC197216436737
52cm	SKUDOM29741858K UPC197216436744
54cm	SKUDOM29455002K UPC197216436751
56cm	SKUDOM2927938K UPC197216436768
58cm	SKUDOM29791155K UPC197216436775
61cm	SKUDOM29970837K UPC197216436782

Size Chart

Trek | Road

Size	Size (cm)	Rider height (in)	Rider height (cm)	Inseam (in)	Inseam (cm)
—	47cm	5'0" - 5'2"	152 - 158 cm	28" - 30"	71 - 75 cm
—	50cm	5'2" - 5'4"	158 - 163 cm	29" - 30"	74 - 77 cm
—	52cm	5'4" - 5'6"	163 - 168 cm	30" - 31"	76 - 79 cm
—	54cm	5'6" - 5'9"	168 - 174 cm	31" - 32"	78 - 82 cm
—	56cm	5'9" - 5'11"	174 - 180 cm	32" - 33"	81 - 85 cm
—	58cm	5'11" - 6'1"	180 - 185 cm	33" - 34"	84 - 87 cm
—	60cm	6'1" - 6'3"	185 - 190 cm	34" - 35"	86 - 90 cm
—	62cm	6'3" - 6'5"	190 - 195 cm	35" - 36"	89 - 92 cm
