Sold out

Trek

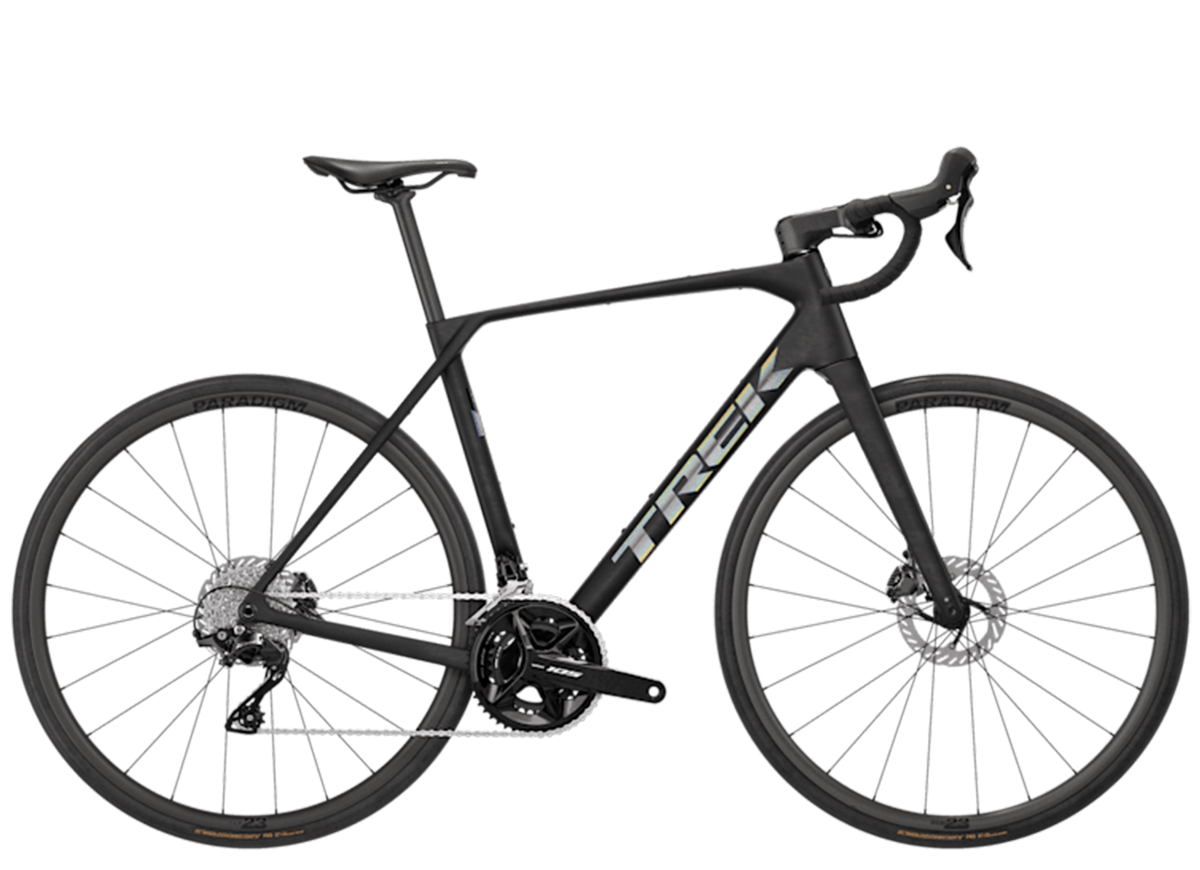

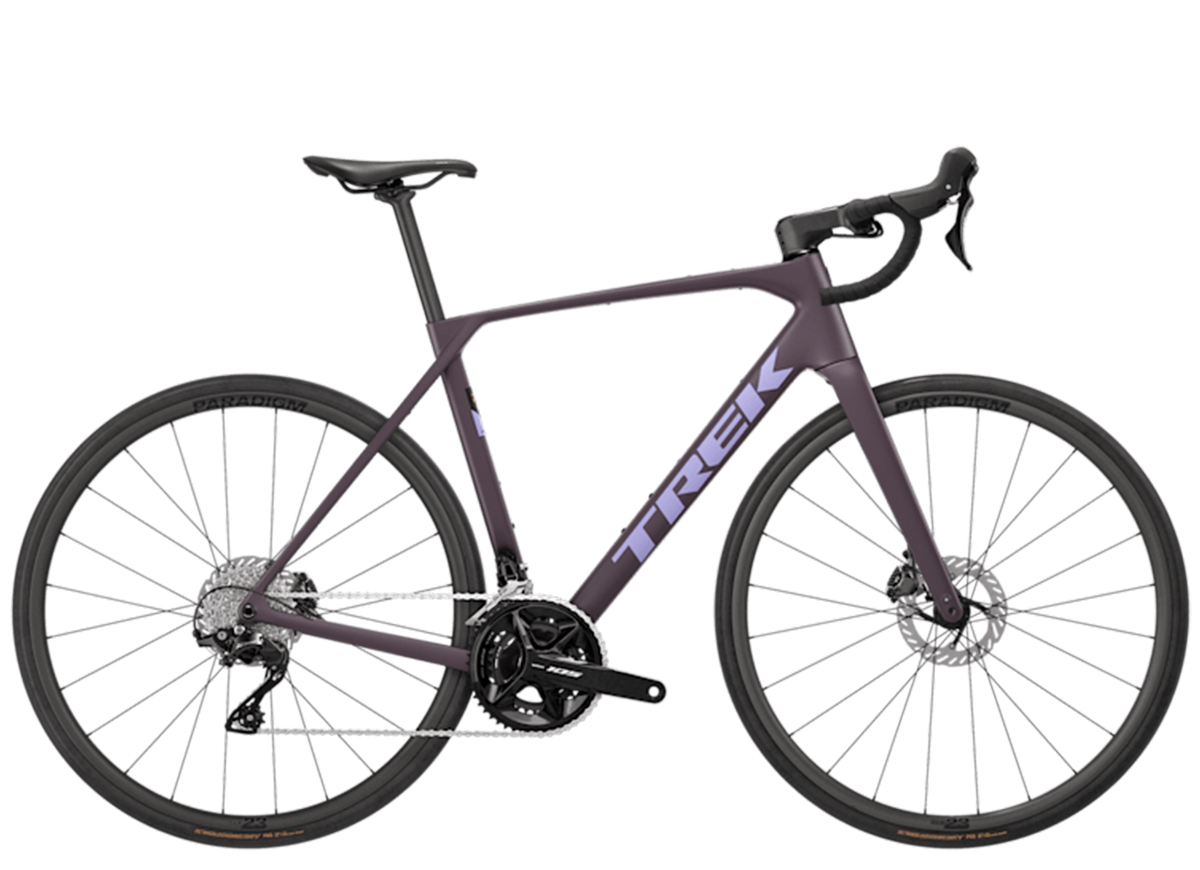

2027 | Domane SL 5 Gen 5

$3,499.99

Shipping calculated at checkout.

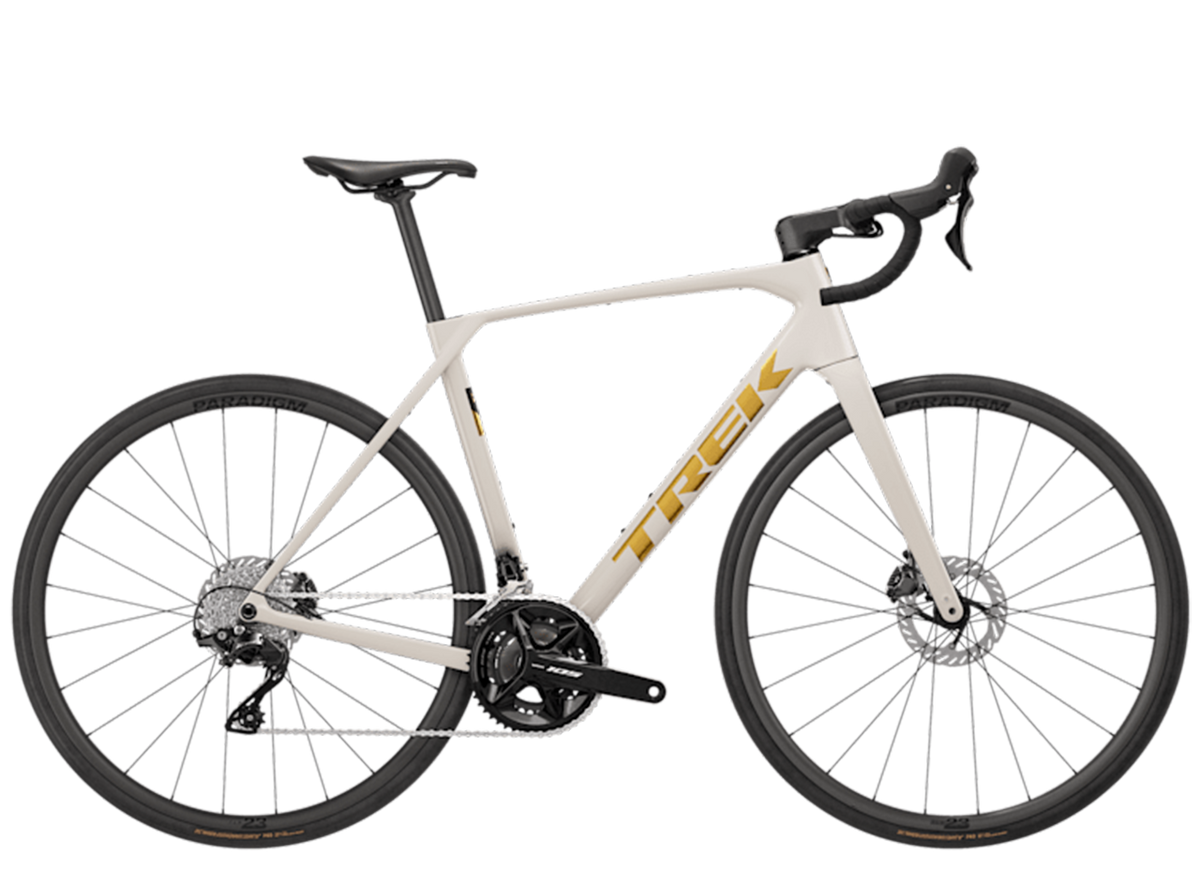

Color: Buff Beige

Size: X-Small

X-Small Small Medium Medium - Large Large X-Large

SKU:DOM244925695

Why Buy a Bike From The Bike Shop?

15% off Parts & Accessories
When you buy a bike at The Bike Shop, you get 15% off of parts and accessories for the first 30 days following your bike purchase. The discount will automatically apply in the checkout at the time of purchase with your bike. This excludes items already marked down and some brands.

Service Plan
If you're local to Calgary or Canmore, you also get one complimentary complete tune-up within the first 16 months of owning the bike. Also included is a lifetime of unlimited service checks to keep you informed on the overall condition of your bike.

After Purchase Support
You're not on your own after you buy a bike from us. We have a dedicated e-comm team that is here to assist if you need help with anything. We also created video tutorials on how to unbox your bike when it arrives and get it ready to read.

Shipping & Returns

We care about your bike. We understand the excitement of unboxing a brand new bike and make sure you get the best experience when receiving your new bike.

Canadian shipping charges:

Sale bikes: $200
Standard pedal bikes over $1250: Free
Standard pedal bikes under $1250: $100
Electric bikes: $200
Fat bikes: $200
Kid's bikes: $60

Insurance charge: 1.5% insured value

We are currently offering gift cards to partially offset the price of shipping a bike! Visit our shipping page for more details

Cargo bikes:
Due to the size of the box that cargo bikes ship in, we are unable to ship cargo bikes directly to your address. Cargo bikes are shipped to a Manitoulin Depot for you to pick-up. For more detail, visit our shipping page.

Bike Specifications

Specifications are subject to change without notice

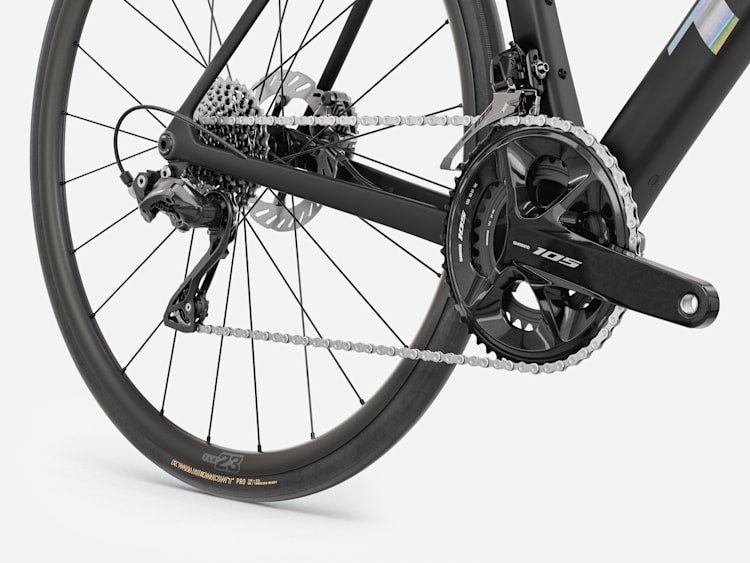

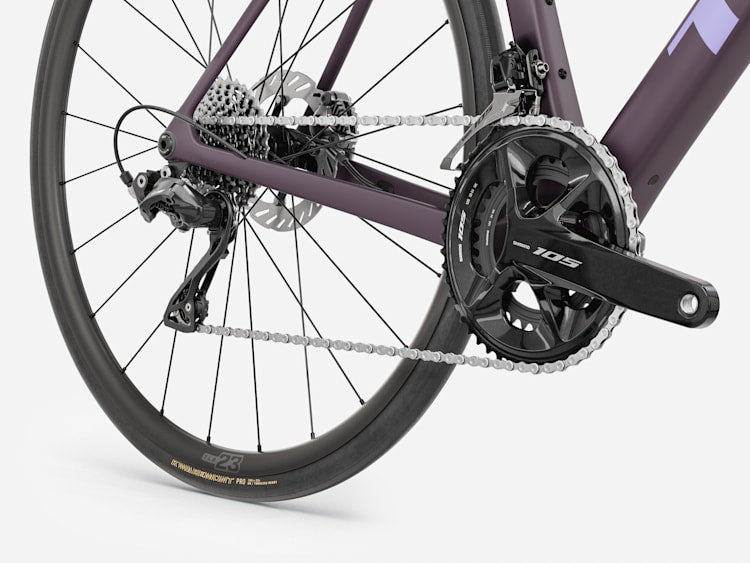

Drivetrain

Cassette Shimano 105 7101, 11-34, 12 speed

Chain Shimano SLX M7100, 12 speed

Crankset Shimano 105 R7100, 50/34T

Crank length Size: XS, S - 160mm | Size: M, ML - 165mm | Size: L, XL - 170mm

Front derailleur Shimano Claris R2000, 31.8 mm clamp

Rear derailleur Shimano Claris R2000, medium cage, 34T max cog

Shifter Shimano 105 R7120, 12 speed

Brakes

Brakeset Shimano 105

Brake rotor Shimano CL700, centerlock, 160mm

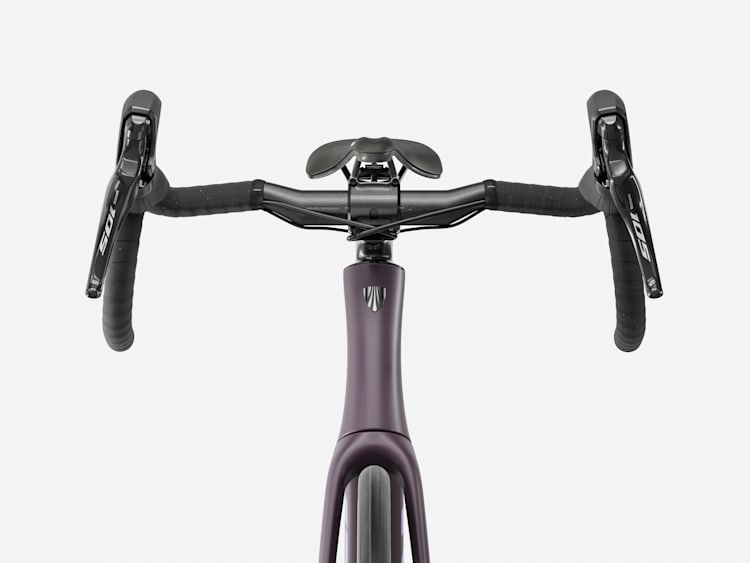

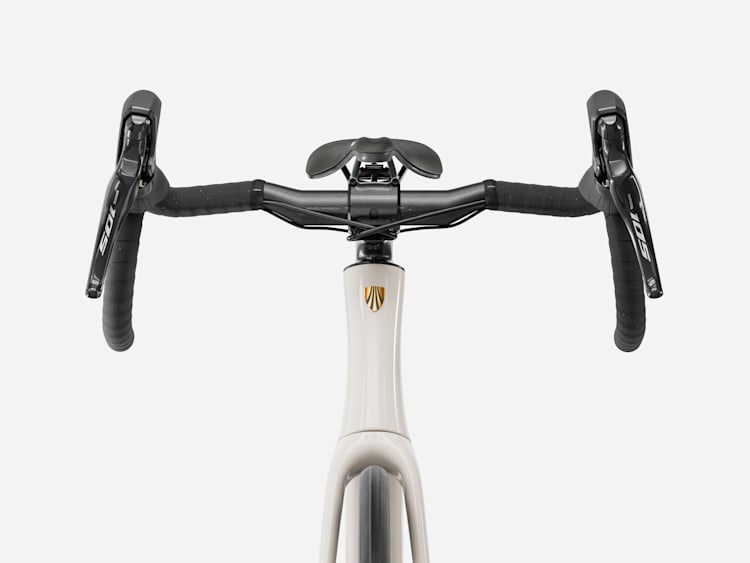

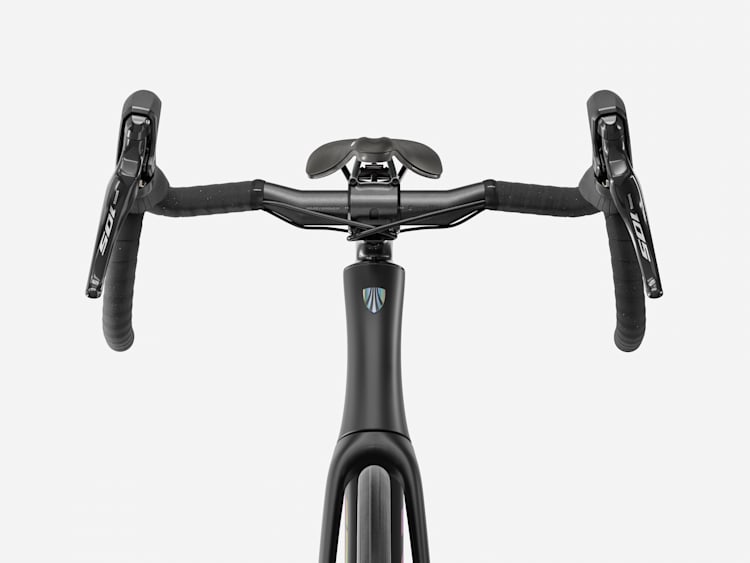

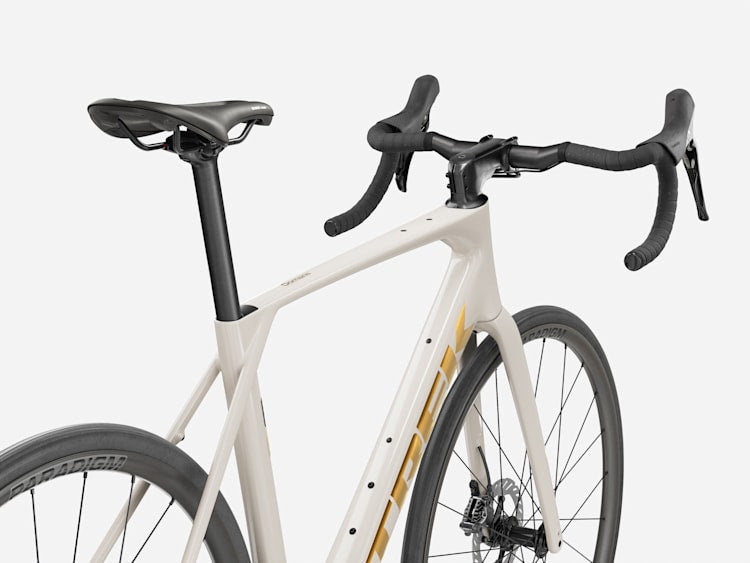

Cockpit

Grips tape Trek gel cork

Handlebars Bontrager Comp Riser, alloy, 20mm rise, 31.8, 70mm reach, 38cm width | Size Specific Widths

Saddle Verse Short Comp, steel rails, 145mm width

Seatpost Bontrager carbon, 27.2mm, 8mm offset, 330mm length

Stem Trek RCS Pro, -7 degree | Size Specific Lengths

Wheels

Front hub Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle

Rear hub Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle

Rims Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23mm width, Presta valve

Spokes 14g stainless steel, black

Tires Bontrager Kwaremont Pro, Tubeless Ready, GR puncture protection, aramid bead, 120 tpi, 700x35mm

Valves Bontrager TLR sealant, 180 ml/6 oz

Wheel size 700c

Suspension

Fork Domane SL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru axle

Fork brand Trek

Frame

Bottom bracket Praxis, T47 threaded, internal bearing

Frame 500 Series OCLV Carbon, internal cable routing, integrated frame bag mounts, T47, integrated chain keeper, fender mounts, flat mount disc, UDH 142x12mm thru axle

Frame material Aluminum

Platform wheel size 700C

Seatpost Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length

Weight as spec d ML - 8.84 kg / 19.49 lbs (with TLR sealant, no tubes)

Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

Description

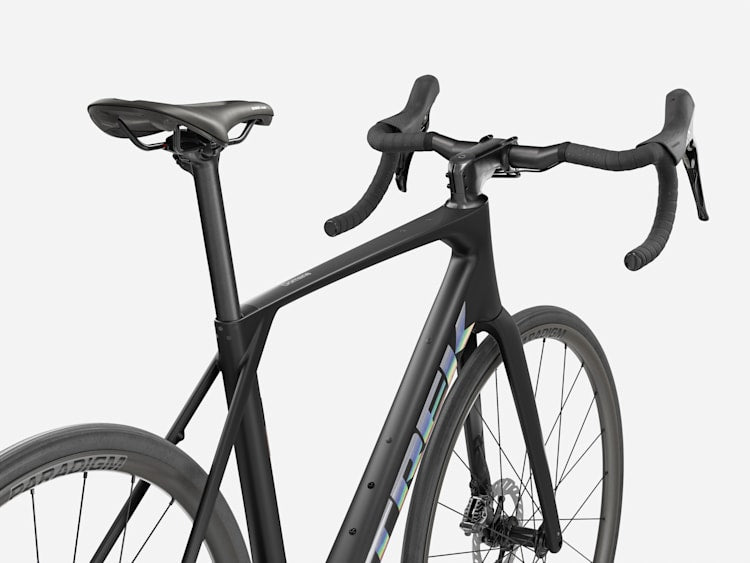

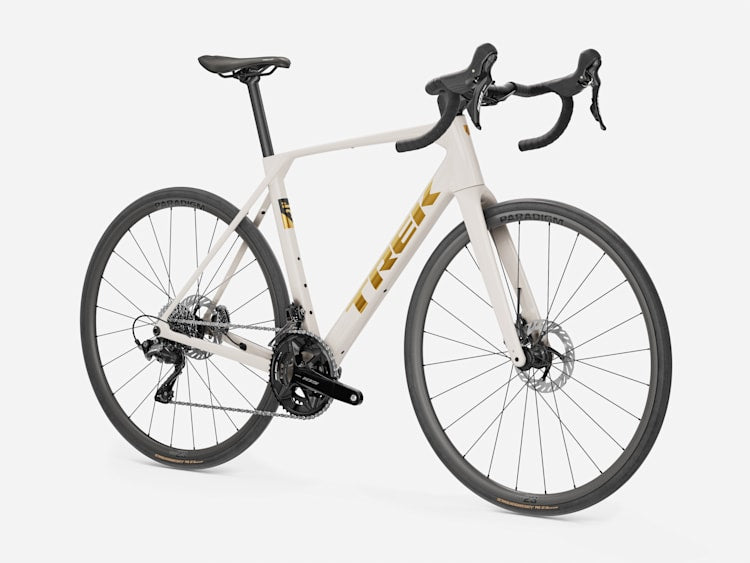

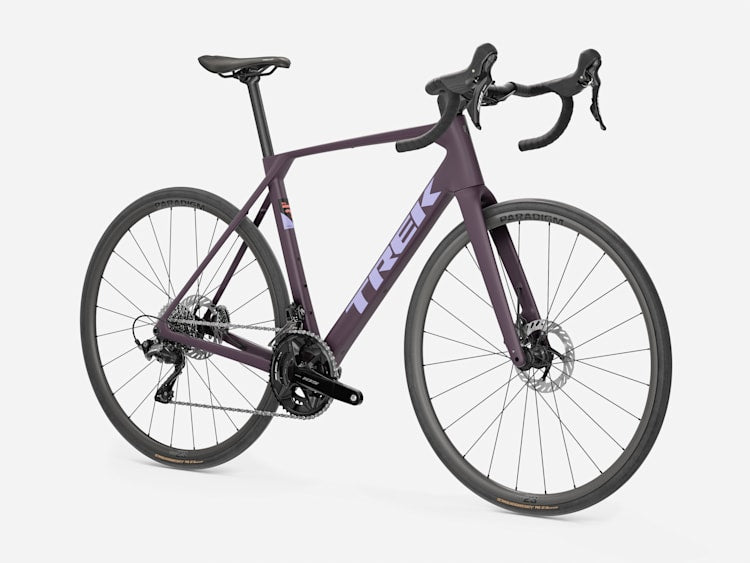

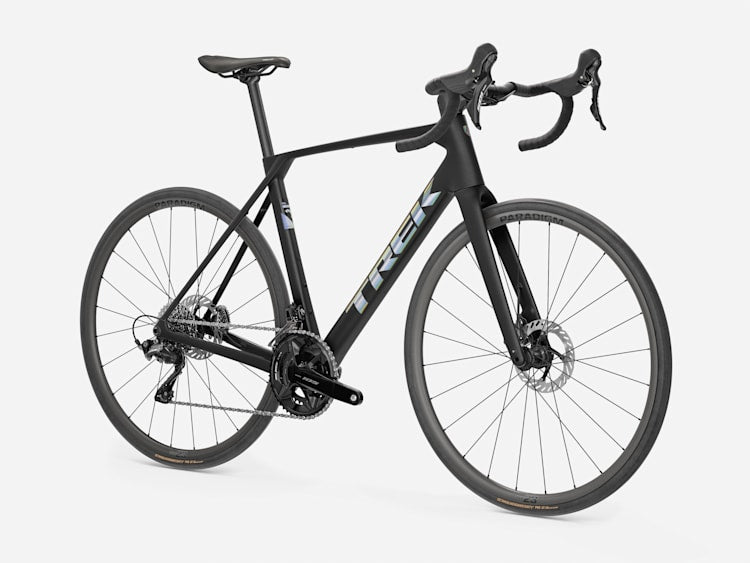

Domane SL 5 is a lightweight carbon endurance bike that blends all-day comfort with clean, modern simplicity. Built from 500 Series OCLV Carbon, it features all-road 40mm tire clearance and a streamlined design that gets back to the essence of road riding. A 12-speed Shimano 105 drivetrain delivers precise shifting and a sleek riser bar adds comfort without cluttering your front end, making it ready for long miles, big days, and light gravel detours.

Geometry Chart

Measurement	44cm	49cm	52cm	54cm	56cm	58cm	61cm
Reach (mm)	360	368	371	374	377	380	385
Stack (mm)	510	540	561	575	591	611	646
Head Tube Angle (°)	70.3°	70.8°	71.3°	71.3°	71.9°	72.0°	72.1°
Seat Tube Angle (°)	74.6°	74.6°	74.2°	73.7°	73.3°	73.0°	72.7°
Wheelbase (mm)	983	1001	1003	1010	1018	1022	1038
Chainstay Length (mm)	420	425	420	420	420	425	425
Head Tube Length (mm)	95	123	145	160	175	195	235
Seat Tube Length (mm)	390	440	475	500	525	548	576
BB Drop (mm)	80	80	80	80	78	78	75
Rake (mm)	53	53	53	53	48	48	48
Trail (mm)	7	7	6	6	6	6	6
Axle to Crown (mm)	510	540	561	575	591	611	646

Part Numbers

Size	Buff Beige	Matte Deep Smoke	Matte Nightshade
X-Small	SKUDOM244925695 VPN5347937 UPC197216458425 MPN5347937	SKUDOM299988685 VPN5347931 UPC197216458364 MPN5347931	SKUDOM30964835 VPN5347943 UPC197216458487 MPN5347943
Small	SKUDOM238477195 VPN5347938 UPC197216458432 MPN5347938	SKUDOM281303245 VPN5347932 UPC197216458371 MPN5347932	SKUDOM299480065 VPN5347944 UPC197216458494 MPN5347944
Medium	SKUDOM237970245 VPN5347939 UPC197216458449 MPN5347939	SKUDOM289197445 VPN5347933 UPC197216458388 MPN5347933	SKUDOM293357915 UPC197216458500 MPN5347945
Medium - Large	SKUDOM249836315 VPN5347940 UPC197216458456 MPN5347940	SKUDOM294430115 VPN5347934 UPC197216458395 MPN5347934	SKUDOM306982845 VPN5347946 UPC197216458517 MPN5347946
Large	SKUDOM231848585 VPN5347941 UPC197216458463 MPN5347941	SKUDOM288471435 VPN5347935 UPC197216458401 MPN5347935	SKUDOM296038815 VPN5347947 UPC197216458524 MPN5347947
X-Large	SKUDOM246349945 VPN5347942 UPC197216458470 MPN5347942	SKUDOM293107735 VPN5347936 UPC197216458418 MPN5347936	SKUDOM306168435 VPN5347948 UPC197216458531 MPN5347948

Size Chart

Trek | Road

Size	Size (cm)	Rider height (in)	Rider height (cm)	Inseam (in)	Inseam (cm)
—	47cm	5'0" - 5'2"	152 - 158 cm	28" - 30"	71 - 75 cm
—	50cm	5'2" - 5'4"	158 - 163 cm	29" - 30"	74 - 77 cm
—	52cm	5'4" - 5'6"	163 - 168 cm	30" - 31"	76 - 79 cm
—	54cm	5'6" - 5'9"	168 - 174 cm	31" - 32"	78 - 82 cm
—	56cm	5'9" - 5'11"	174 - 180 cm	32" - 33"	81 - 85 cm
—	58cm	5'11" - 6'1"	180 - 185 cm	33" - 34"	84 - 87 cm
—	60cm	6'1" - 6'3"	185 - 190 cm	34" - 35"	86 - 90 cm
—	62cm	6'3" - 6'5"	190 - 195 cm	35" - 36"	89 - 92 cm
