Sold out

Trek

2027 | Domane SL 6 AXS Gen 5

$5,499.99

Shipping calculated at checkout.

Color: Buff Beige

Size: X-Small

X-Small Small Medium Medium - Large Large X-Large

SKU:DOM273762965

Why Buy a Bike From The Bike Shop?

15% off Parts & Accessories
When you buy a bike at The Bike Shop, you get 15% off of parts and accessories for the first 30 days following your bike purchase. The discount will automatically apply in the checkout at the time of purchase with your bike. This excludes items already marked down and some brands.

Service Plan
If you're local to Calgary or Canmore, you also get one complimentary complete tune-up within the first 16 months of owning the bike. Also included is a lifetime of unlimited service checks to keep you informed on the overall condition of your bike.

After Purchase Support
You're not on your own after you buy a bike from us. We have a dedicated e-comm team that is here to assist if you need help with anything. We also created video tutorials on how to unbox your bike when it arrives and get it ready to read.

Shipping & Returns

We care about your bike. We understand the excitement of unboxing a brand new bike and make sure you get the best experience when receiving your new bike.

Canadian shipping charges:

Sale bikes: $200
Standard pedal bikes over $1250: Free
Standard pedal bikes under $1250: $100
Electric bikes: $200
Fat bikes: $200
Kid's bikes: $60

Insurance charge: 1.5% insured value

We are currently offering gift cards to partially offset the price of shipping a bike! Visit our shipping page for more details

Cargo bikes:
Due to the size of the box that cargo bikes ship in, we are unable to ship cargo bikes directly to your address. Cargo bikes are shipped to a Manitoulin Depot for you to pick-up. For more detail, visit our shipping page.

Bike Specifications

Specifications are subject to change without notice

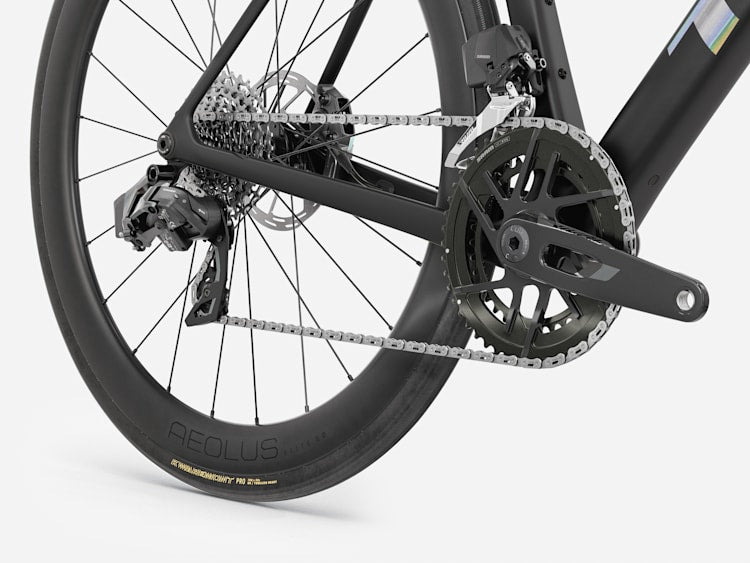

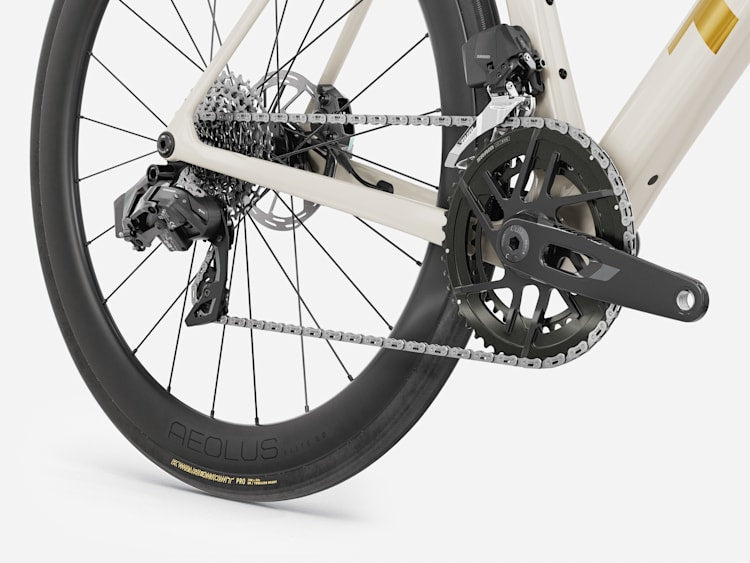

Drivetrain

Cassette SRAM XG-1250, 10-36, 12 speed

Chain SRAM Rival E1, 12/13 speed

Crankset SRAM Rival AXS E1, 48/35, DUB

Crank length Size: XS, S - 160mm | Size: M, ML - 165mm | Size: L, XL - 170mm

Front derailleur SRAM Rival AXS, braze-on

Rear derailleur SRAM Rival AXS, 36T max cog

Shifter SRAM Rival AXS E1

Brakes

Brakeset SRAM Rival AXS E1

Brake rotor SRAM Paceline, rounded, centerlock, 160mm

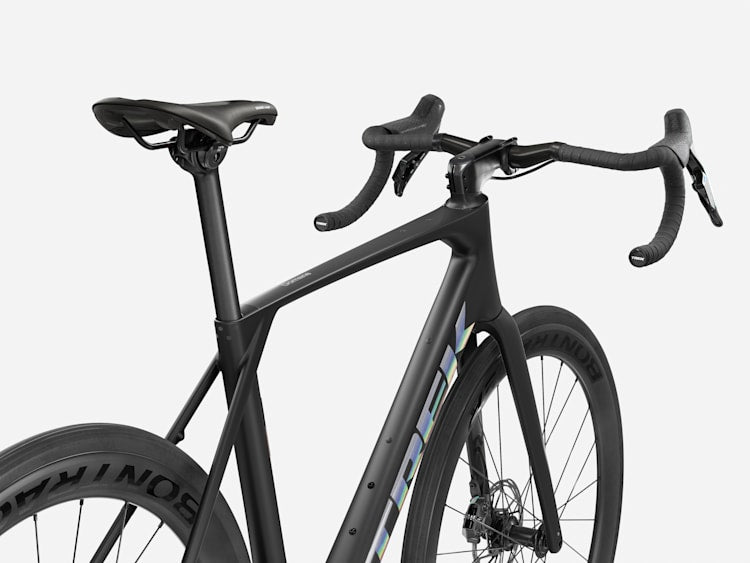

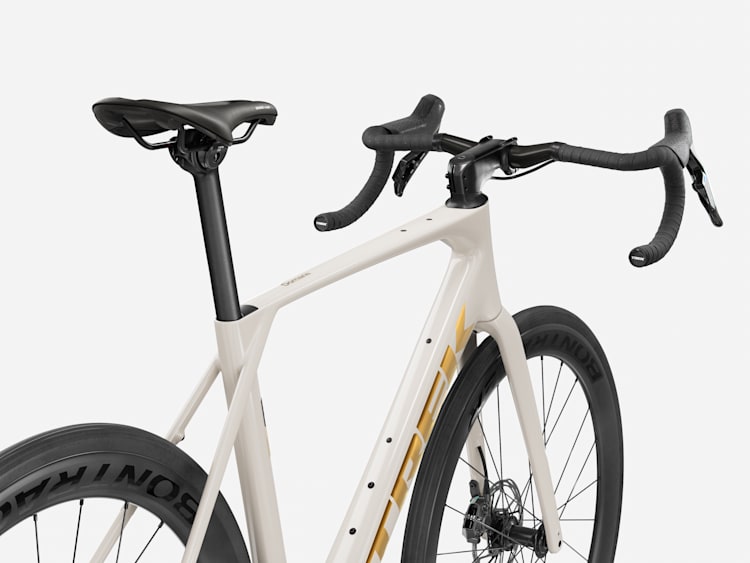

Cockpit

Grips tape Trek gel cork

Handlebars Bontrager Comp Riser, alloy, 20mm rise, 31.8, 70mm reach | Size Specific Width

Saddle Verse Short Comp, steel rails, 145mm width

Seatpost Bontrager RSL carbon, 27.2mm, 5mm offset

Stem Trek RCS Pro, -7 degree

Wheels

Rims Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23mm width, Presta valve

Tires Bontrager Kwaremont Pro, Tubeless Ready, GR puncture protection, aramid bead, 120 tpi, 700x35mm

Wheels F: Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 100x12mm thru axle | R: Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 50mm rim depth, Sram XDR freehub, 142x12mm thru axle

Wheel size 700c

Suspension

Fork Domane SL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru axle

Fork brand Trek

Frame

Bottom bracket SRAM DUB, T47 threaded, internal bearing

Frame 500 Series OCLV Carbon, internal cable routing, integrated frame bag mounts, T47, integrated chain keeper, fender mounts, flat mount disc, UDH 142x12mm thru axle

Frame material Aluminum

Platform wheel size 700C

Seatpost Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length

Weight as spec d ML - 8.64 kg / 19.05 lbs (with TLR sealant, no tubes)

Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

Description

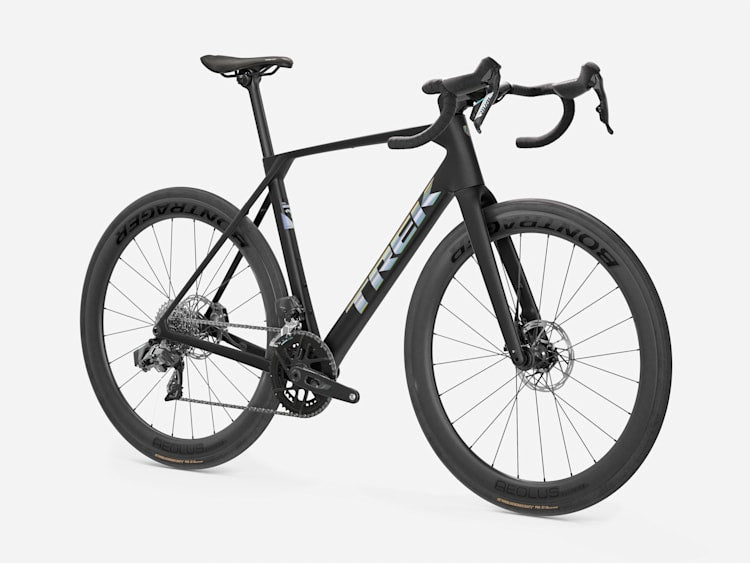

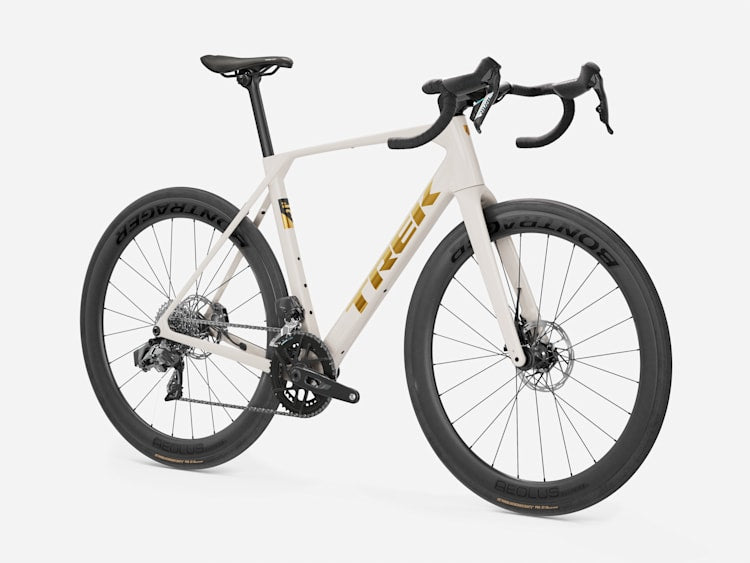

Domane SL 6 AXS is a lightweight carbon endurance bike with high-tech wireless performance. Its 500 Series OCLV Carbon frame keeps the ride smooth and efficient, with 40mm tire clearance for added comfort and versatility. A SRAM Rival AXS 2x12 drivetrain delivers crisp, wireless shifting, a sleek riser bar keeps you comfortable without cluttering your front end, and Bontrager Aeolus Elite 50 carbon wheels add speed and stability for long endurance rides.

Geometry Chart

Measurement	44cm	49cm	52cm	54cm	56cm	58cm	61cm
Reach (mm)	360	368	371	374	377	380	385
Stack (mm)	510	540	561	575	591	611	646
Head Tube Angle (°)	70.3°	70.8°	71.3°	71.3°	71.9°	72.0°	72.1°
Seat Tube Angle (°)	74.6°	74.6°	74.2°	73.7°	73.3°	73.0°	72.7°
Wheelbase (mm)	983	1001	1003	1010	1018	1022	1038
Chainstay Length (mm)	420	425	420	420	420	425	425
Head Tube Length (mm)	95	123	145	160	175	195	235
Seat Tube Length (mm)	390	440	475	500	525	548	576
BB Drop (mm)	80	80	80	80	78	78	75
Rake (mm)	53	53	53	53	48	48	48
Trail (mm)	7	7	6	6	6	6	6
Axle to Crown (mm)	510	540	561	575	591	611	646

Part Numbers

Size	Buff Beige	Matte Deep Smoke
X-Small	SKUDOM273762965 VPN5349679 UPC197216458906 MPN5349679	SKUDOM322596465 VPN5349673 UPC197216458845 MPN5349673
Small	SKUDOM263448645 VPN5349680 UPC197216458913 MPN5349680	SKUDOM315077955 VPN5349674 UPC197216458852 MPN5349674
Medium	SKUDOM267733715 VPN5349681 UPC197216458920 MPN5349681	SKUDOM313196675 VPN5349675 UPC197216458869 MPN5349675
Medium - Large	SKUDOM279459825 VPN5349682 UPC197216458937 MPN5349682	SKUDOM326944855 VPN5349676 UPC197216458876 MPN5349676
Large	SKUDOM267819335 VPN5349683 UPC197216458944 MPN5349683	SKUDOM315781645 VPN5349677 UPC197216458883 MPN5349677
X-Large	SKUDOM272137395 VPN5349684 UPC197216458951 MPN5349684	SKUDOM326162965 VPN5349678 UPC197216458890 MPN5349678

Size Chart

Trek | Road

Size	Size (cm)	Rider height (in)	Rider height (cm)	Inseam (in)	Inseam (cm)
—	47cm	5'0" - 5'2"	152 - 158 cm	28" - 30"	71 - 75 cm
—	50cm	5'2" - 5'4"	158 - 163 cm	29" - 30"	74 - 77 cm
—	52cm	5'4" - 5'6"	163 - 168 cm	30" - 31"	76 - 79 cm
—	54cm	5'6" - 5'9"	168 - 174 cm	31" - 32"	78 - 82 cm
—	56cm	5'9" - 5'11"	174 - 180 cm	32" - 33"	81 - 85 cm
—	58cm	5'11" - 6'1"	180 - 185 cm	33" - 34"	84 - 87 cm
—	60cm	6'1" - 6'3"	185 - 190 cm	34" - 35"	86 - 90 cm
—	62cm	6'3" - 6'5"	190 - 195 cm	35" - 36"	89 - 92 cm
