ENVE
AR40
AR40
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
- Free shipping on orders over $80
- 100% satisfaction guaranteed. We stand behind everything that we sell. If for any reason you are not satisfied with your purchase, simply return the item within 30 days and we'll exchange it or refund your purchase.
Visit our shipping page for more details
SKU:ENV3663275C
Share this product
Description
Description

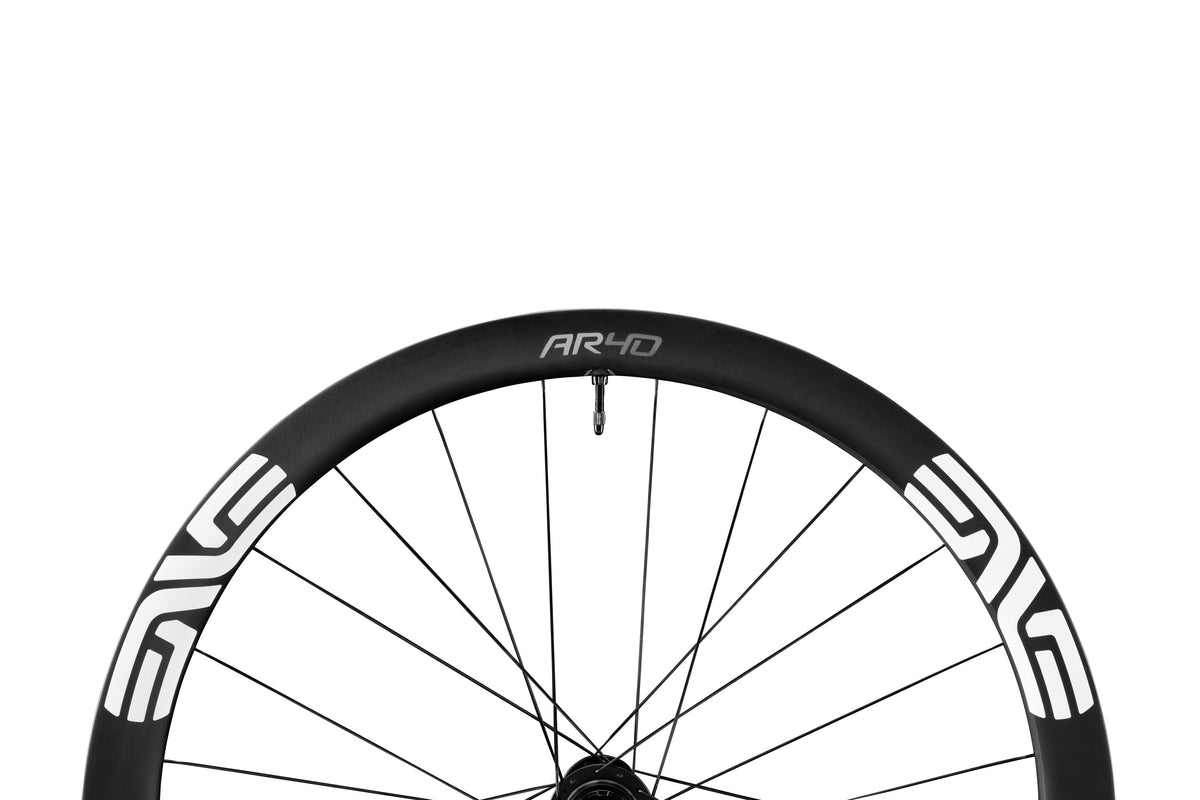

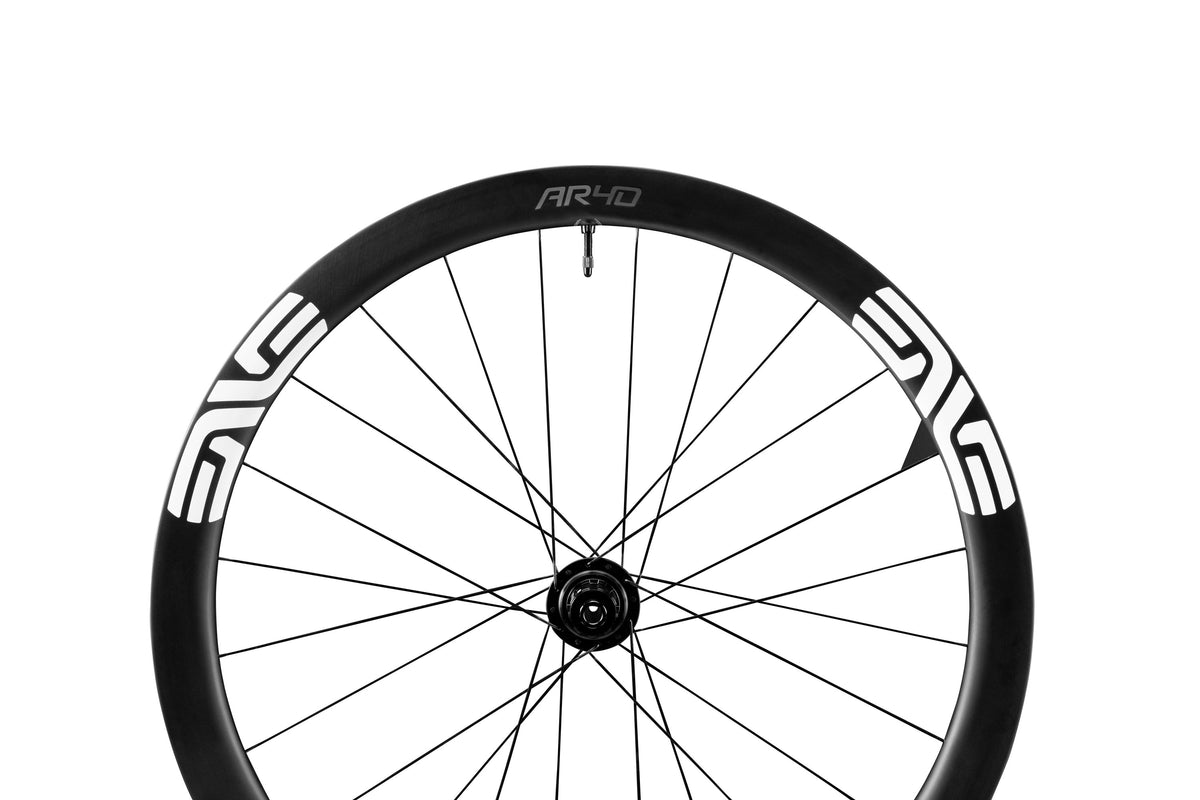

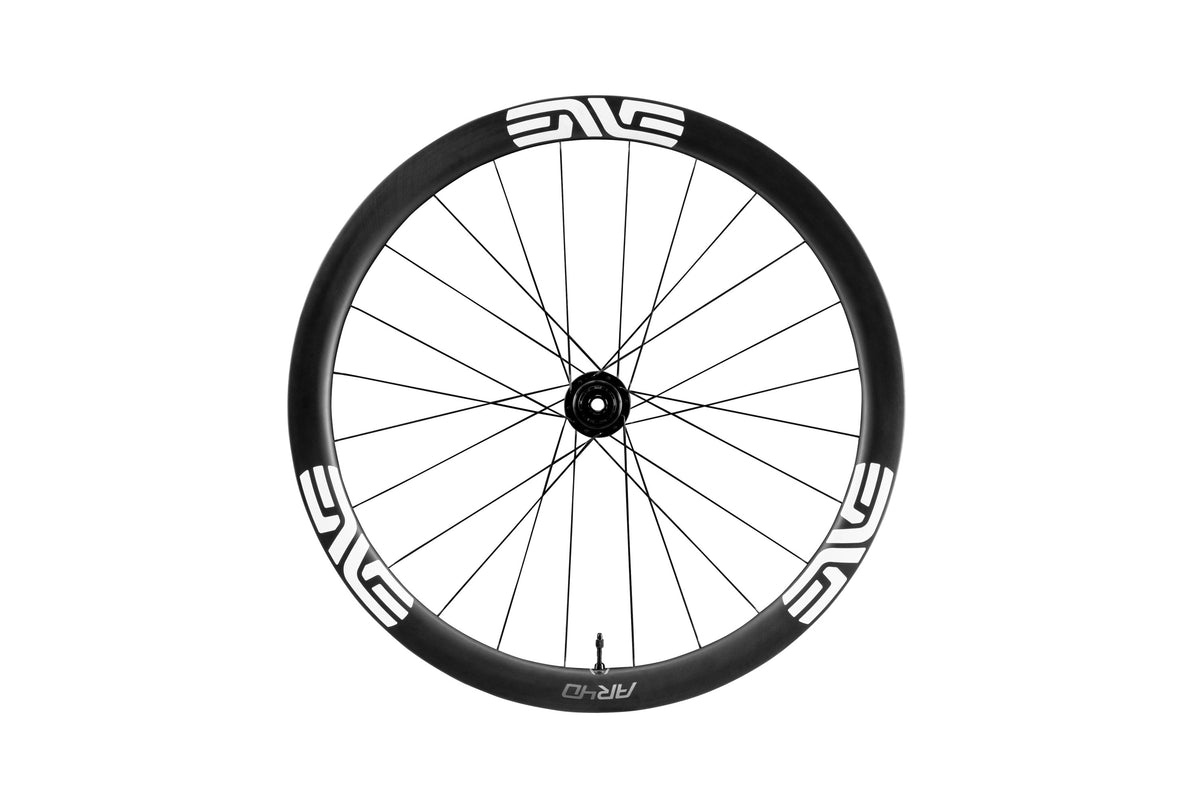

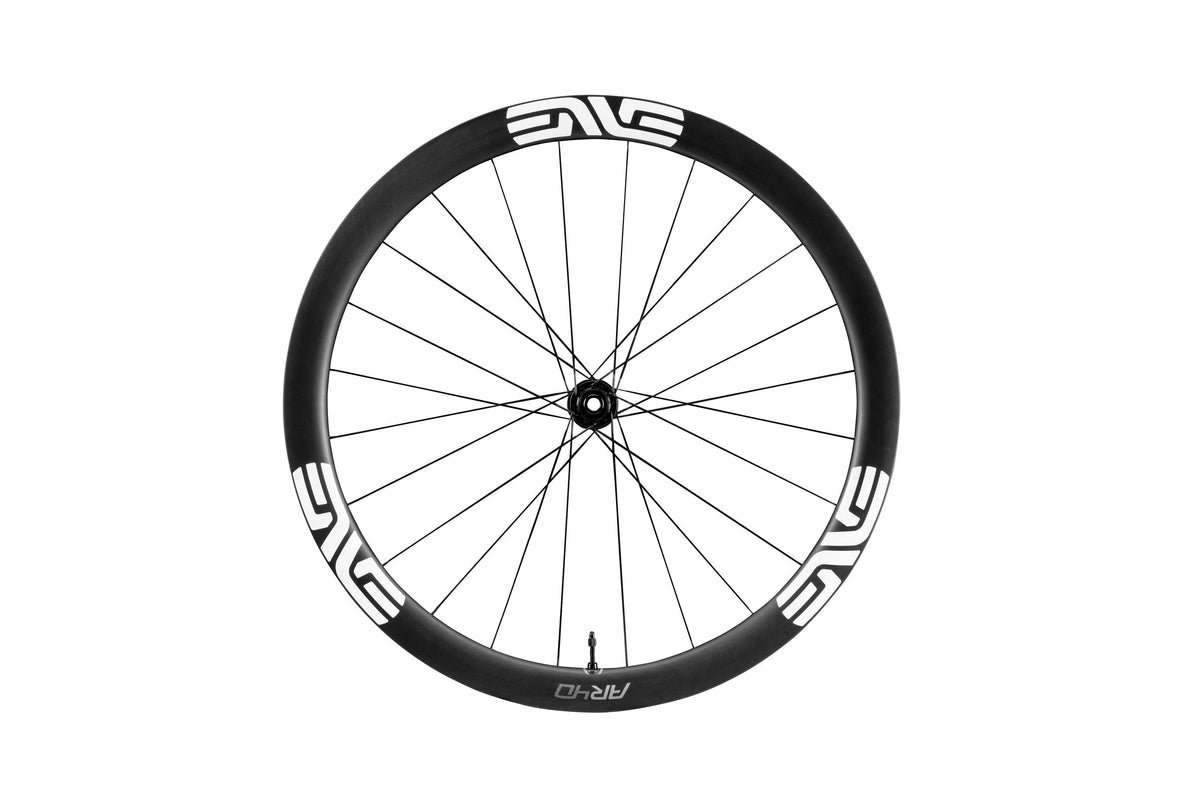

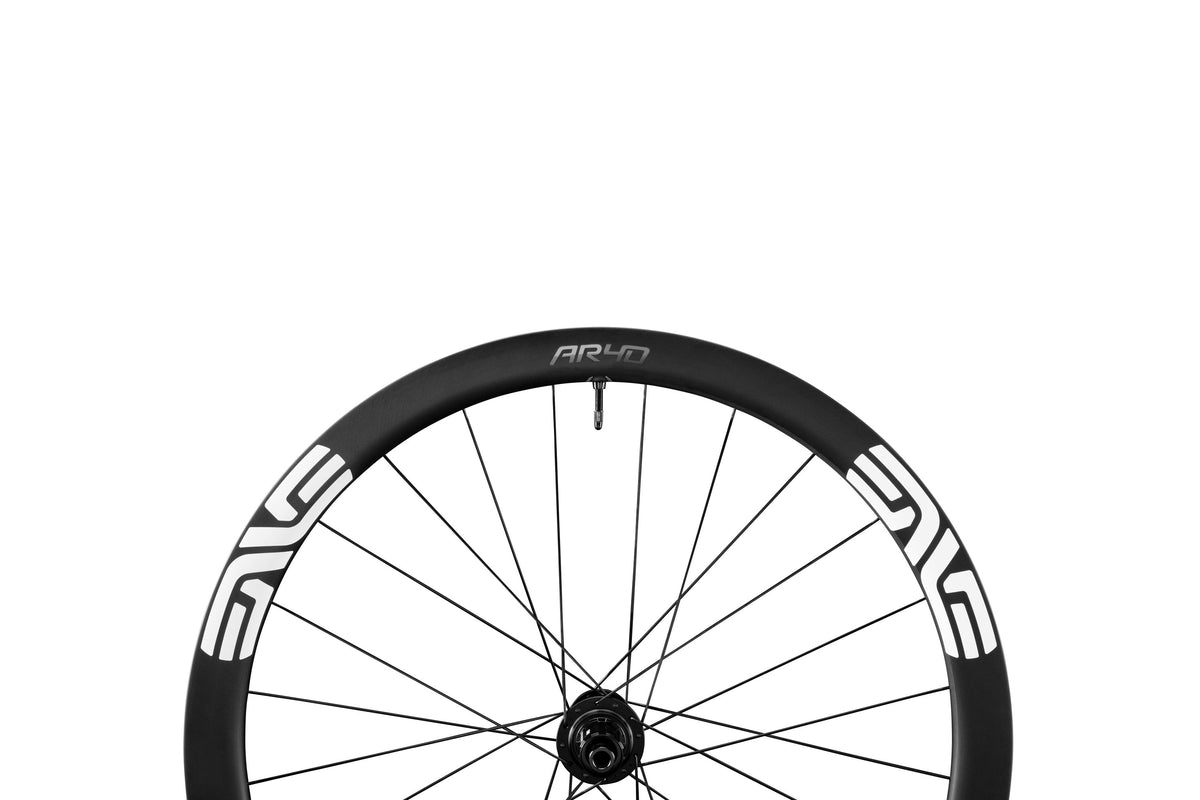

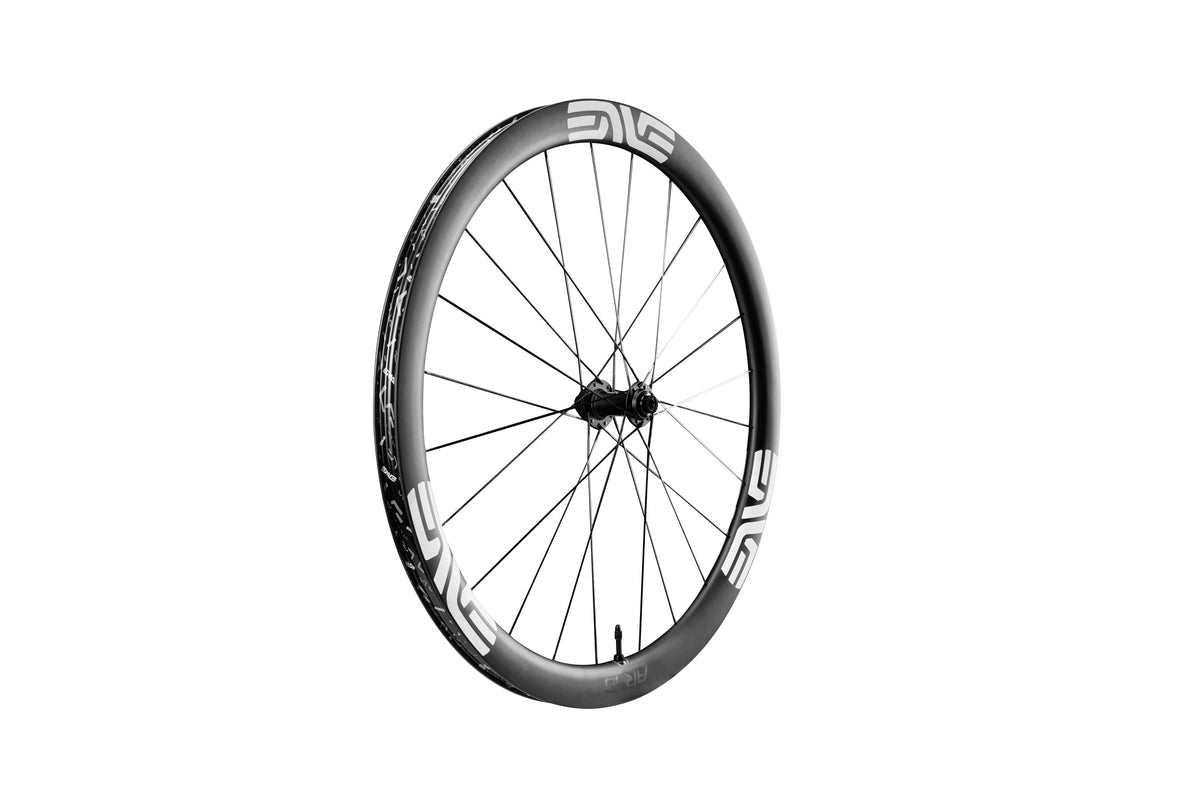

The AR40 is the latest addition to the Foundation lineup. Featuring an aerodynamically optimized 40 mm rim depth front and rear, with a 25 mm internal rim width, the AR40 is designed to deliver ultimate versatility for the road rider and racer looking for performance on and off-road. Borrowing from SES rim design knowledge, the AR40 is aerodynamically tuned for 29 mm – 30 mm tires and delivers drag reduction that punches above its depth and price point. While designed primarily for on-road performance, the AR40 has been tested and qualified to ENVE’s gravel standards to ensure safety and speed for gravel riding and racing applications.
| Specification | Front | Rear |
|---|---|---|
| Rim weight | 425 g | 425 g |
| Wheel weight | 690 g | 825 g |
| Wheelset weight | 1,515 g, including tape and valves, with HG freehub | — |
| Effective rim diameter (ERD) | 579 mm (±3 mm) | 579 mm (±3 mm) |
| Internal rim width | 25 mm | 25 mm |
| Sidewall width | 3.6 mm | 3.6 mm |
| Pinch-flat technology | Wide hookless bead | Wide hookless bead |
| Hole count | 24h | 24h |
| Depth | 40 mm | 40 mm |
| Tubeless tape width | 29 mm | 29 mm |
| Tubeless valve length | 61 mm | 61 mm |
| Spokes | Sapim CX-Ray J-Bend | Sapim CX-Ray J-Bend |

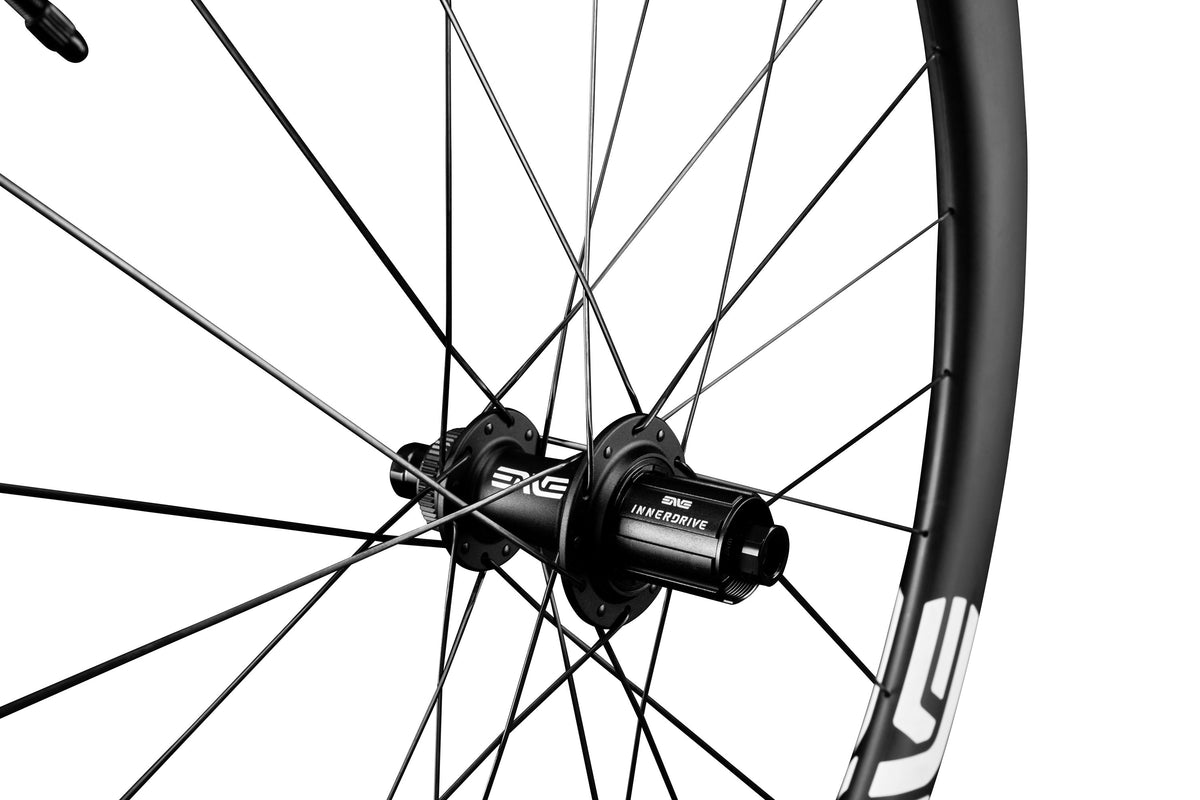

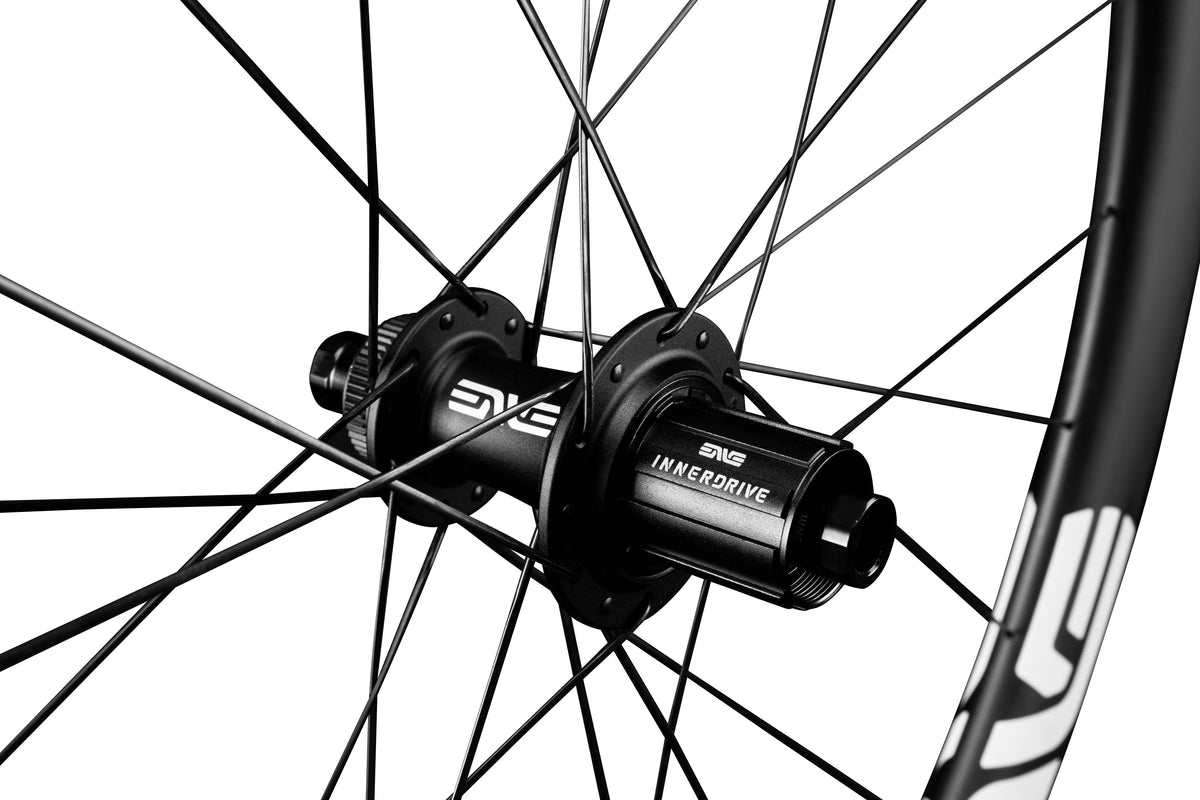

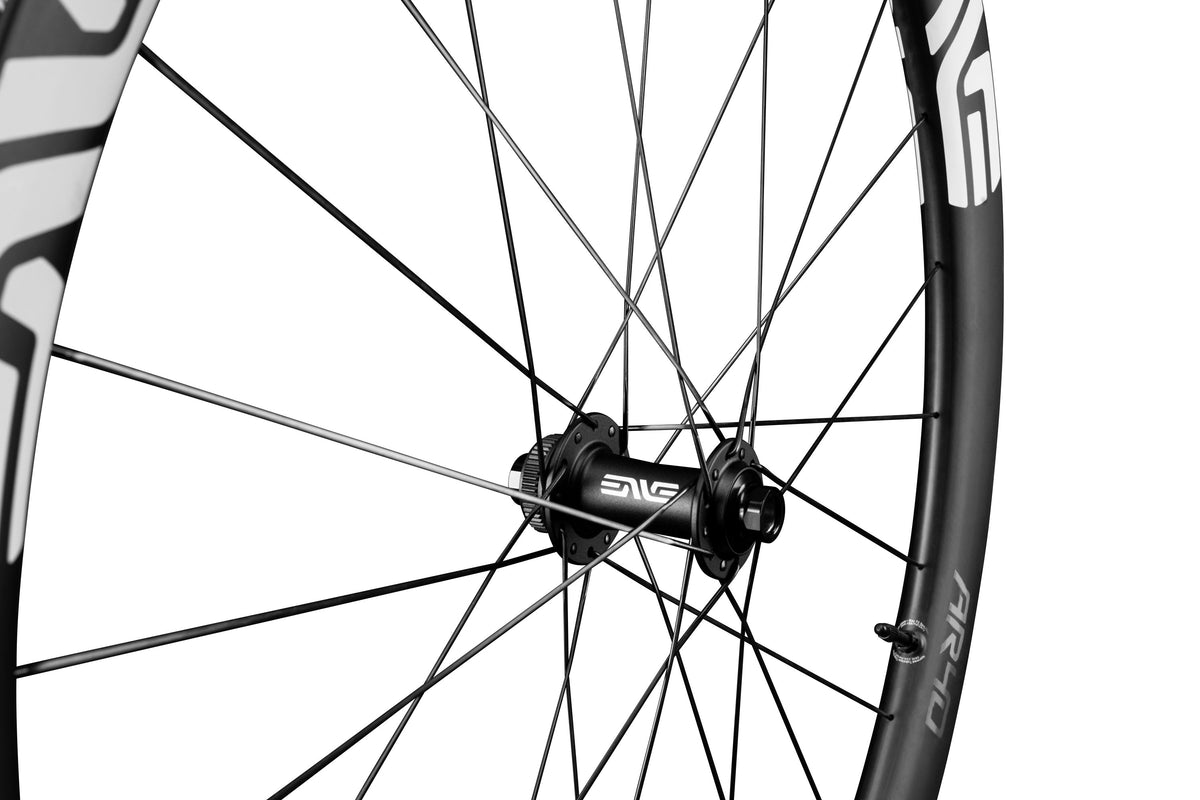

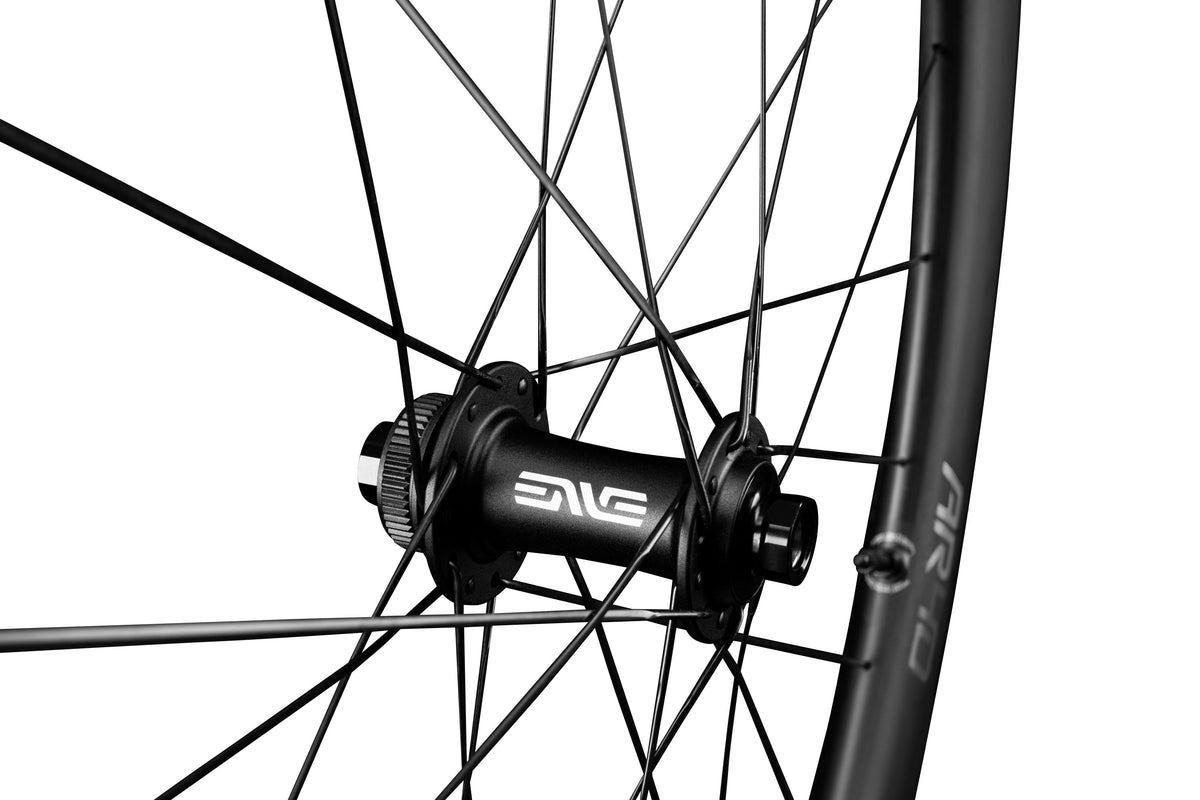

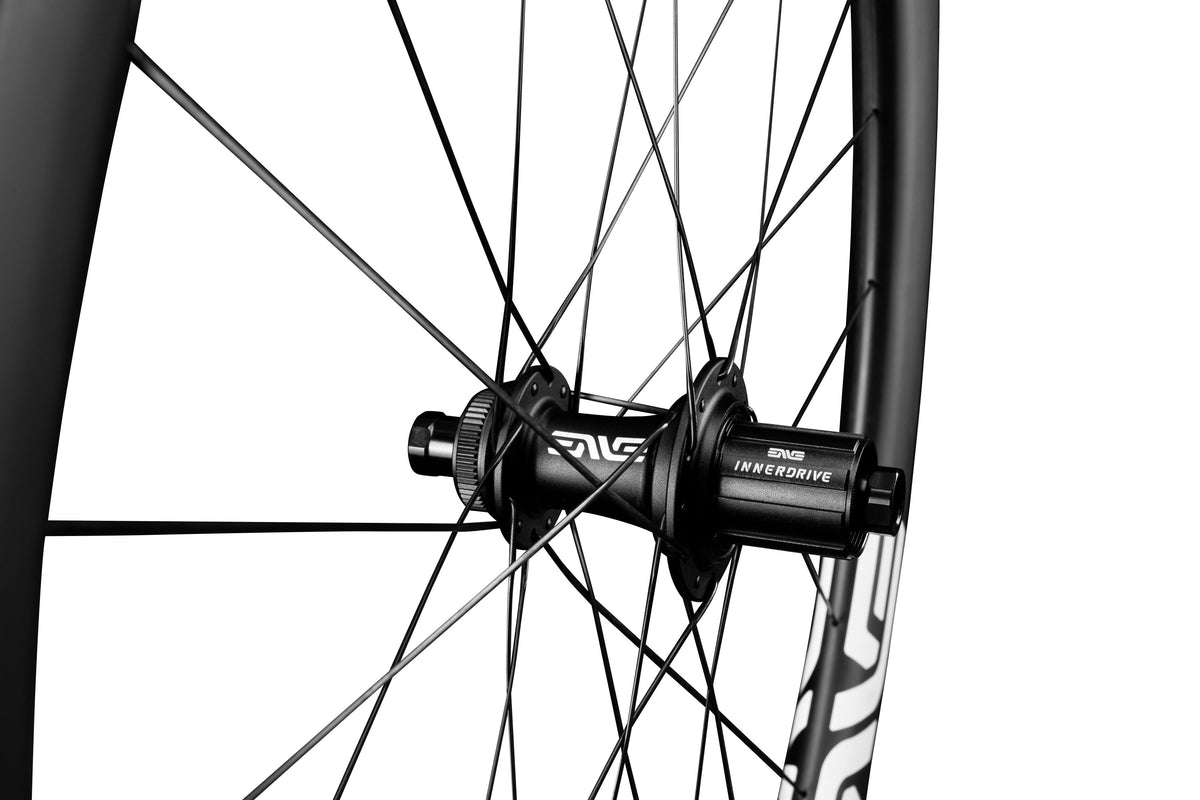

| Hub | ENVE INNERDRIVE – Foundation | ENVE INNERDRIVE – Foundation |
| Recommended tire size | 27–50 mm | 27–50 mm |
| Minimum tire size | 27 mm* | 27 mm* |
| Maximum tire pressure with minimum-size tire | 80 psi / 5.5 bar | 80 psi / 5.5 bar |
| Spoke length (INNERDRIVE Foundation hubs) | 278 mm / 280 mm | 274 mm / 280 mm |
| Nipples | Alpina Nylock Brass | Alpina Nylock Brass |
| Spoke tension | 120 kgf | 120 kgf |
| Brake type | Centerlock | Centerlock |
Part Numbers
Part Numbers
| Decal Color / Freehub Body | Front | Rear |
|---|---|---|
| White / None (Front Wheel Only) |
SKUENV3663275C
UPC00810165978546
MPN100-3324-001
|
— |
| White / Shimano HG | — |
SKUENV37924858C
UPC00810165978553
MPN100-3324-002
|
| White / Sram XDR | — |
SKUENV38539361C
UPC810165978560
MPN100-3324-003
|
| White / Microspline | — |
SKUENV3778956C
MPN100-3324-004
|
