Sold out

Cannondale

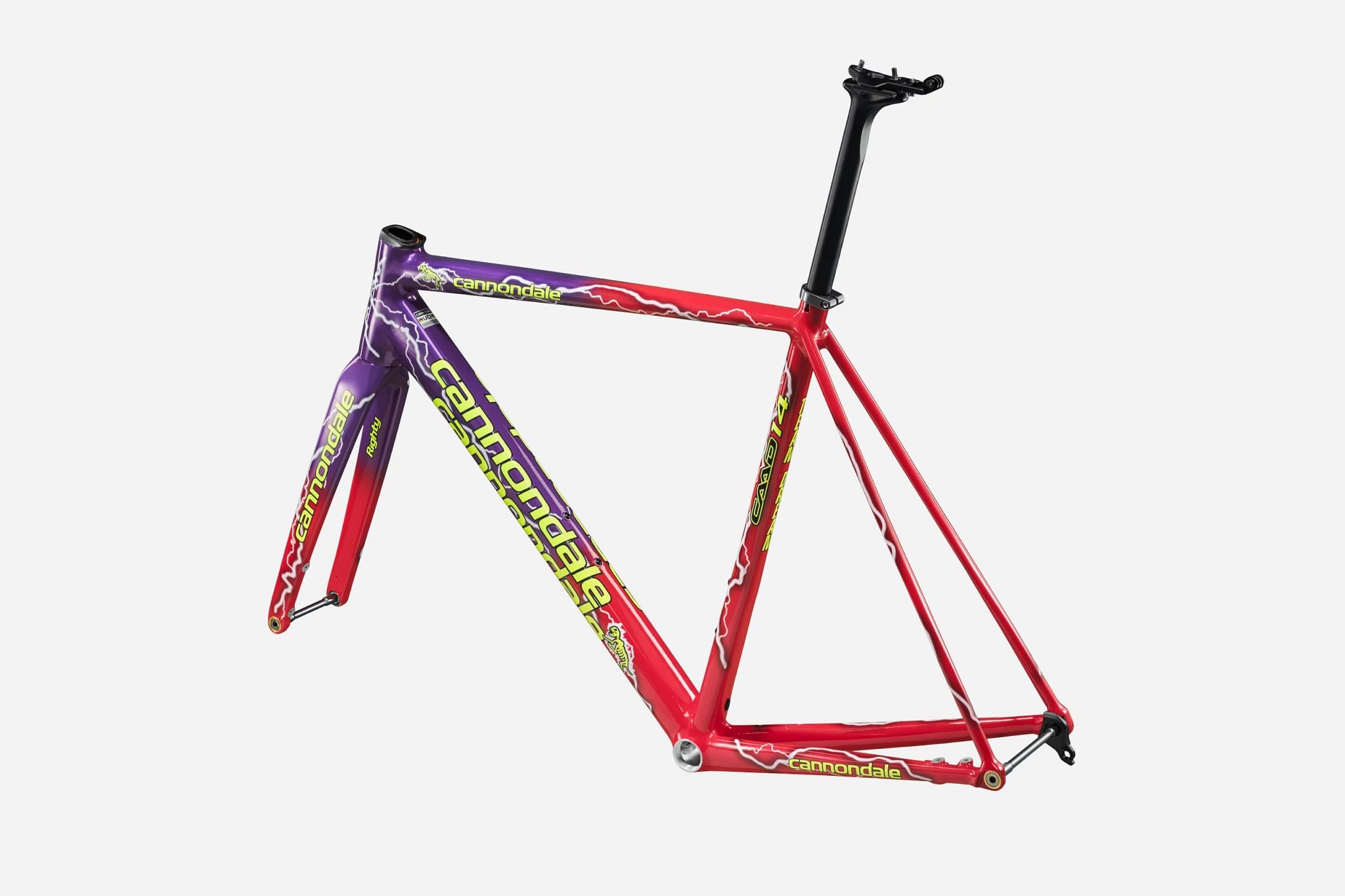

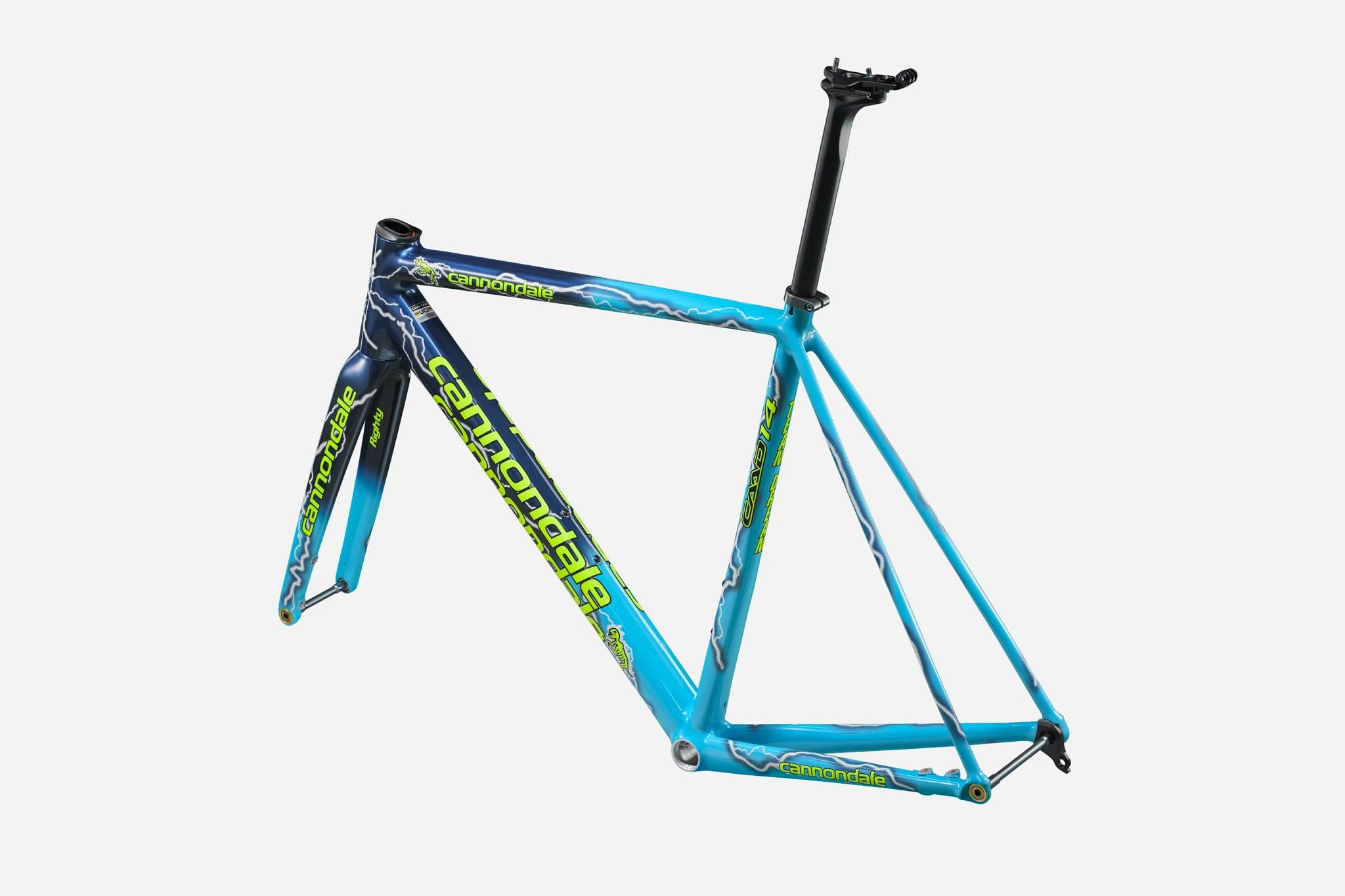

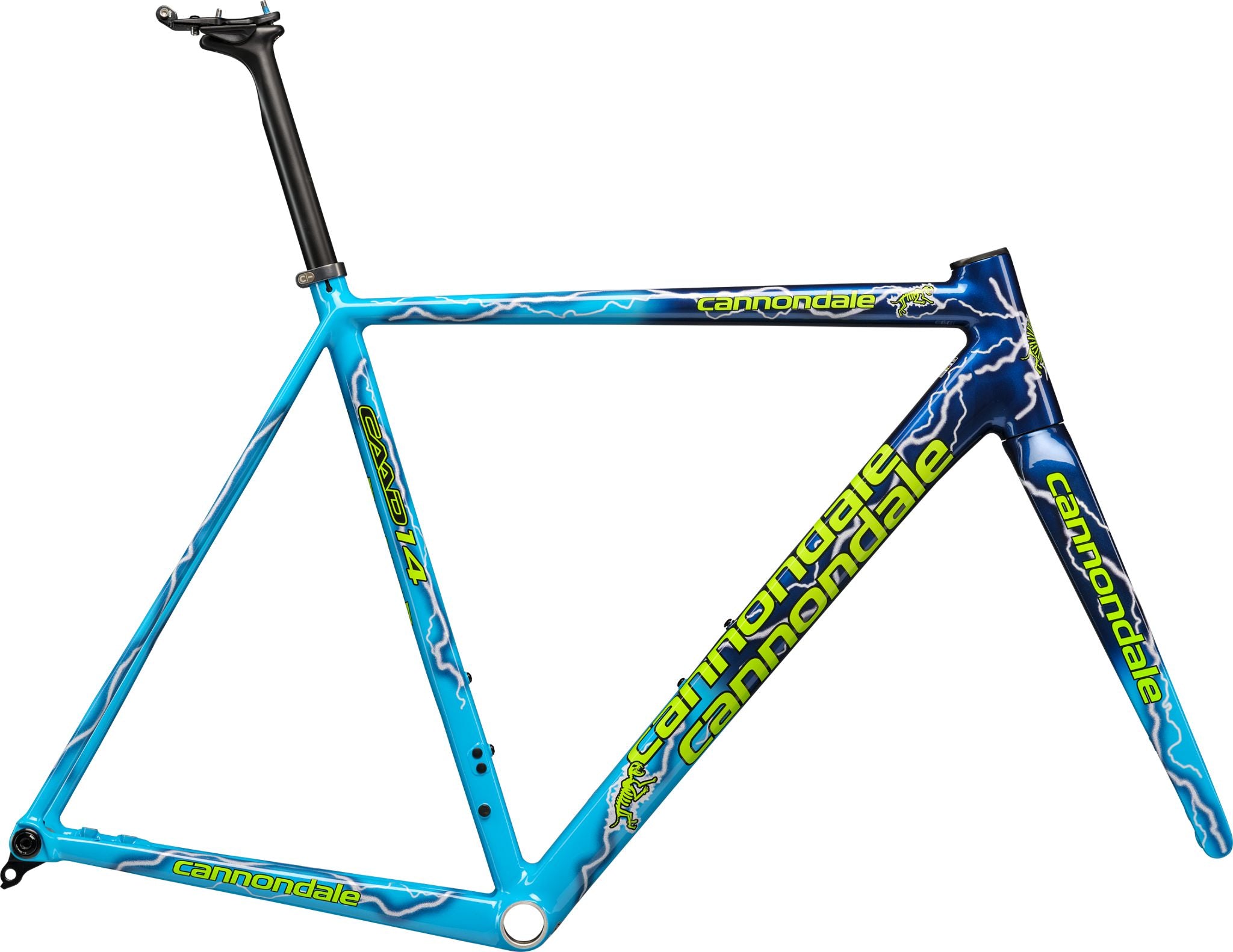

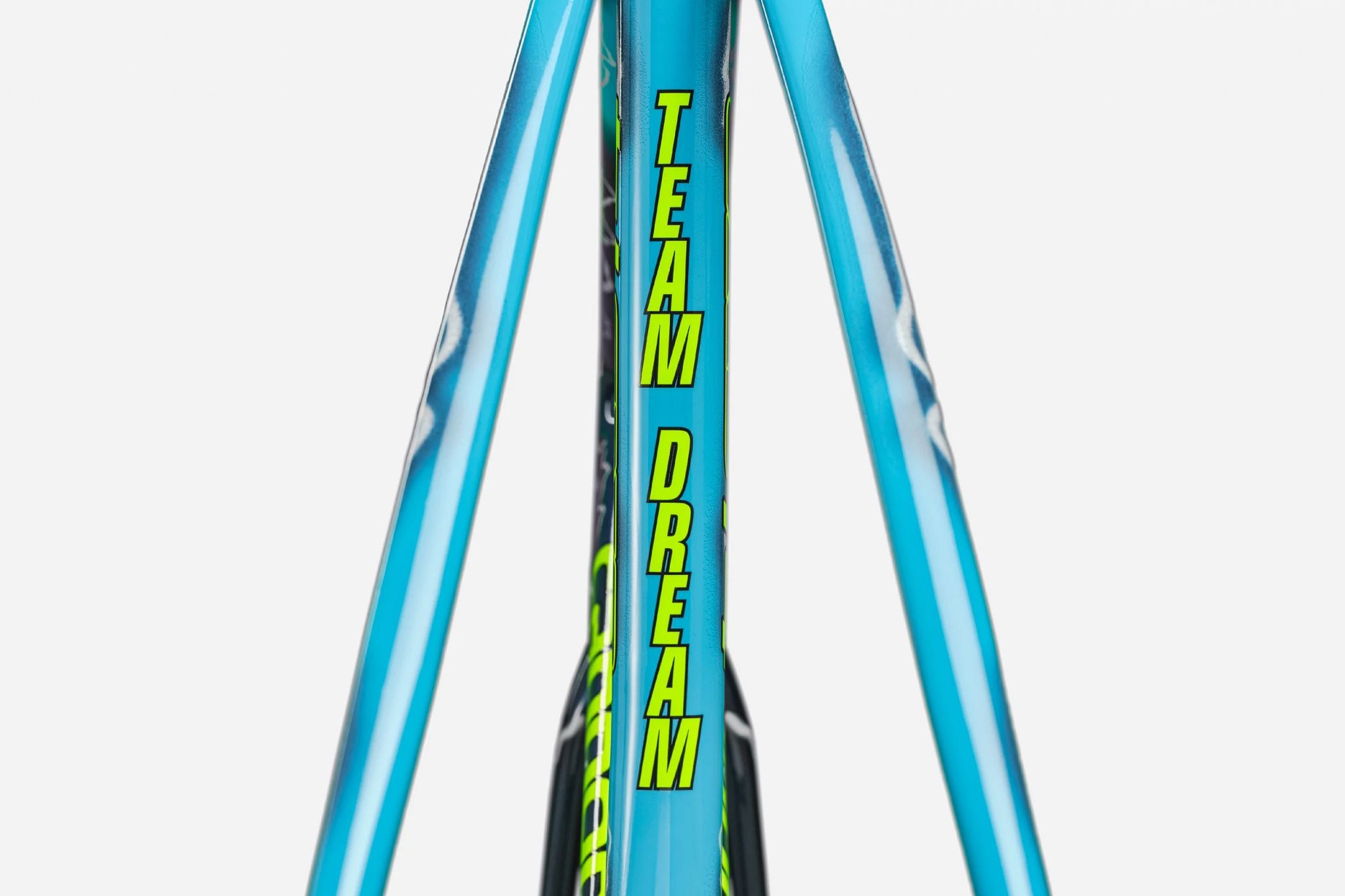

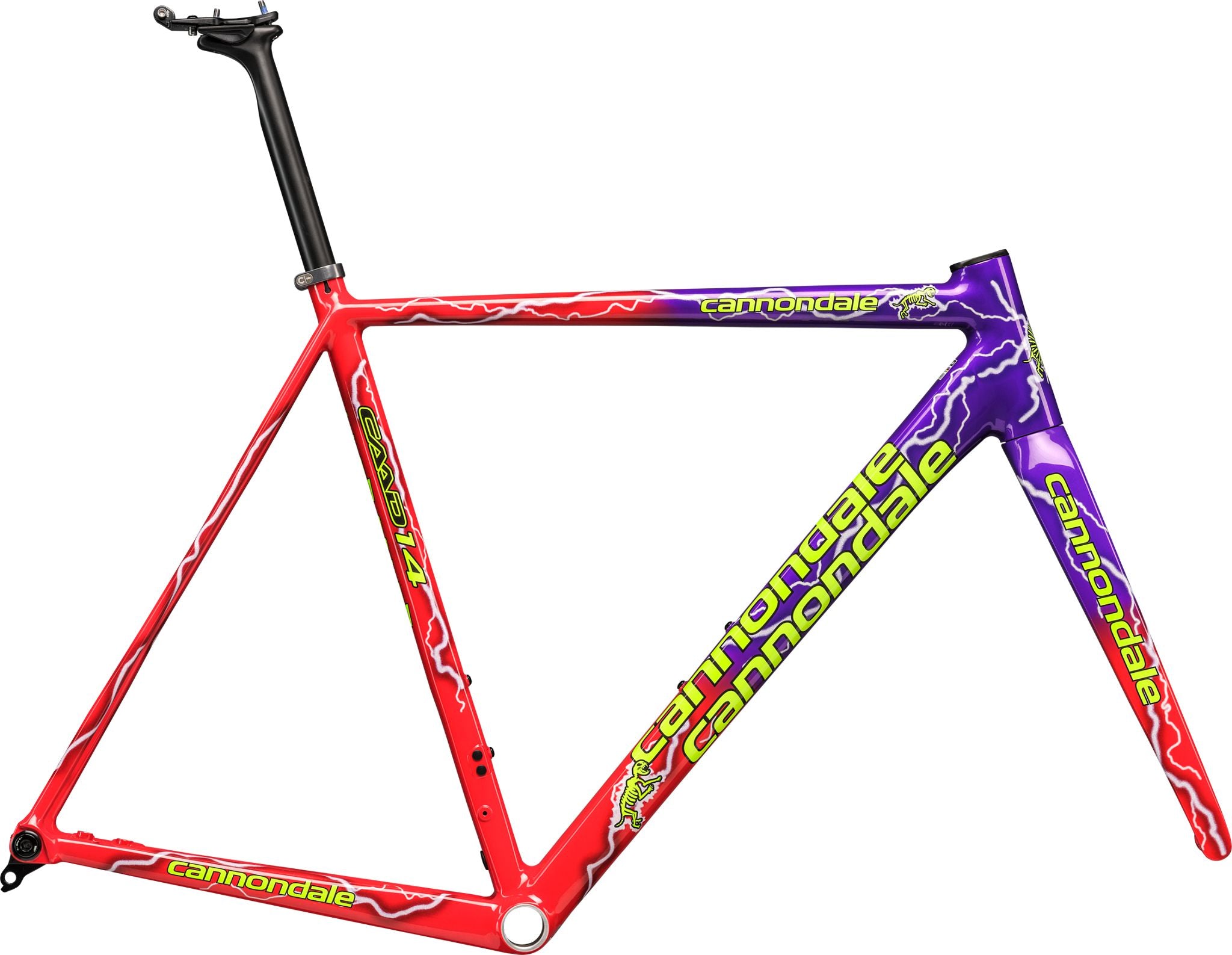

Cannondale x Team Dream CAAD14 frameset

$3,400.00

Shipping calculated at checkout.

Color: Team Dream Blue

Size: 48cm

48cm 51cm 54cm 56cm 58cm 61cm

SKU:C1305GU1048

Shipping & Returns

We care about your bike. We understand the excitement of unboxing a brand new bike and make sure you get the best experience when receiving your new bike.

Canadian shipping charges:

Sale bikes: $200
Standard pedal bikes over $1250: Free
Standard pedal bikes under $1250: $100
Electric bikes: $200
Fat bikes: $200
Kid's bikes: $60

Insurance charge: 1.5% insured value

We are currently offering gift cards to partially offset the price of shipping a bike! Visit our shipping page for more details

Bike Specifications

Specifications are subject to change without notice

Cockpit

Seatpost Cannondale SAVE Carbon, 27.2x350mm, 11mm offset

Suspension

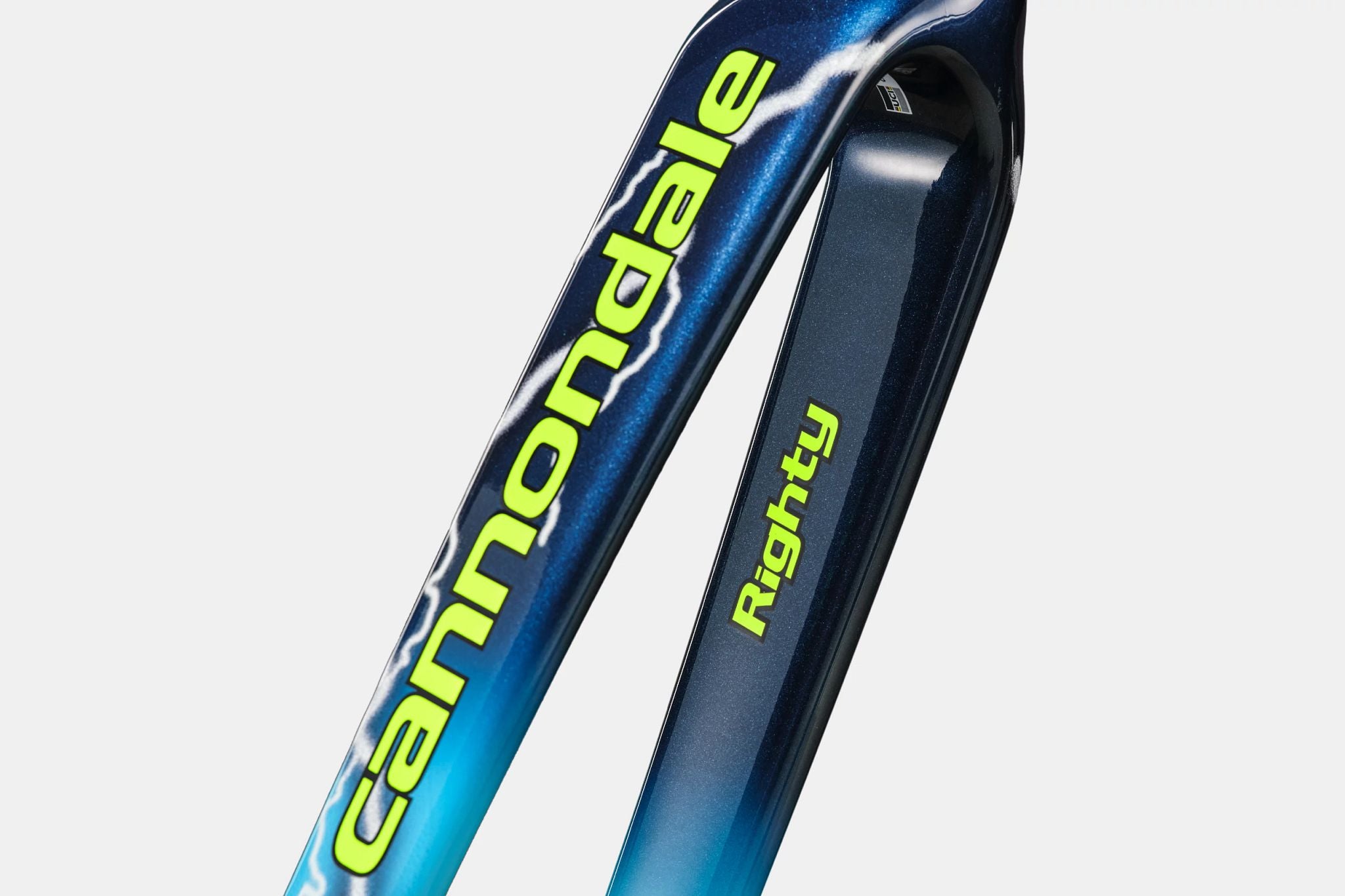

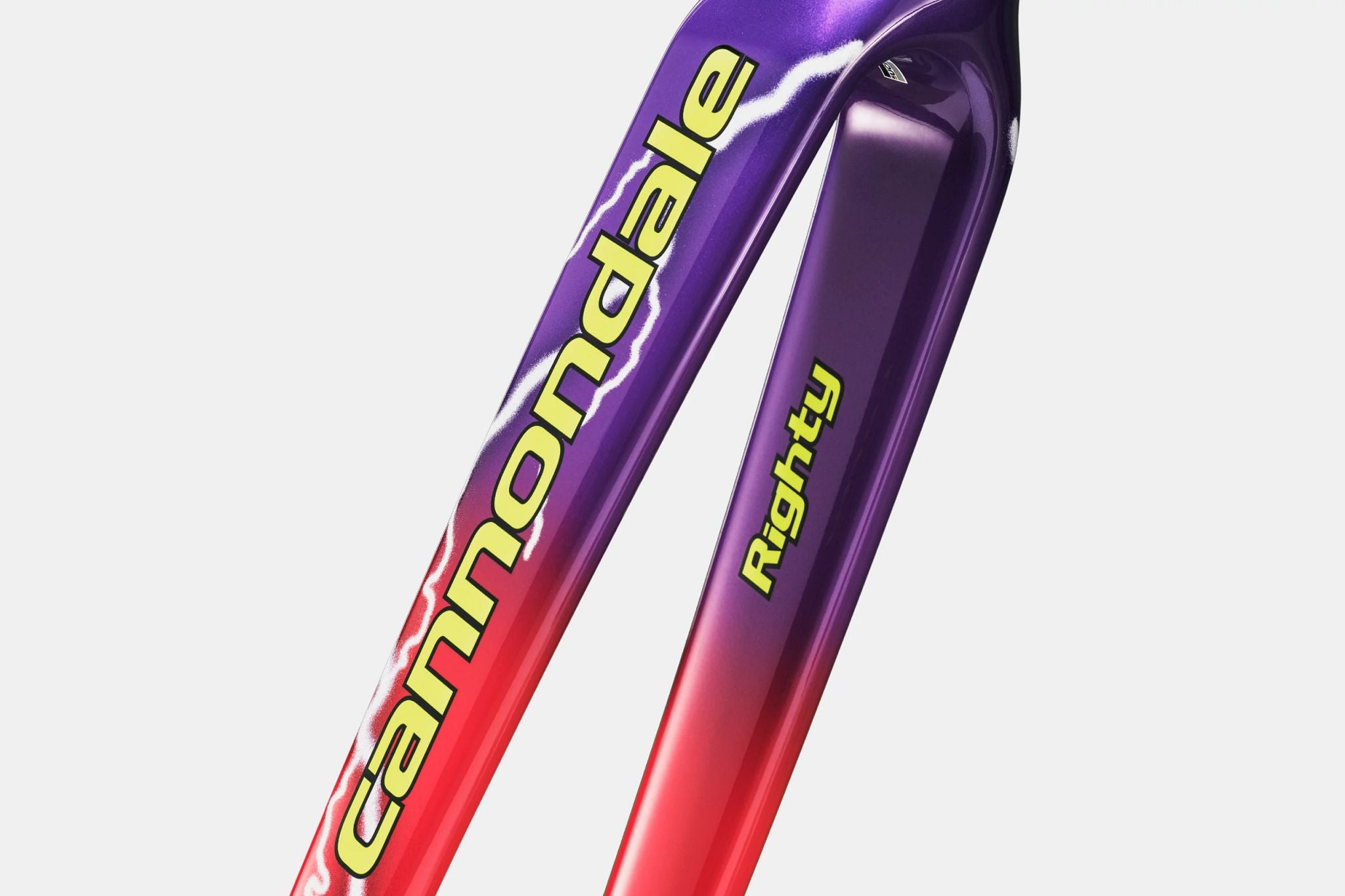

Fork CAAD14, full carbon, 1-1/8" to 1-1/2" Delta Steerer, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 55mm offset (44-54cm), 45mm offset (56-61cm)

Frame

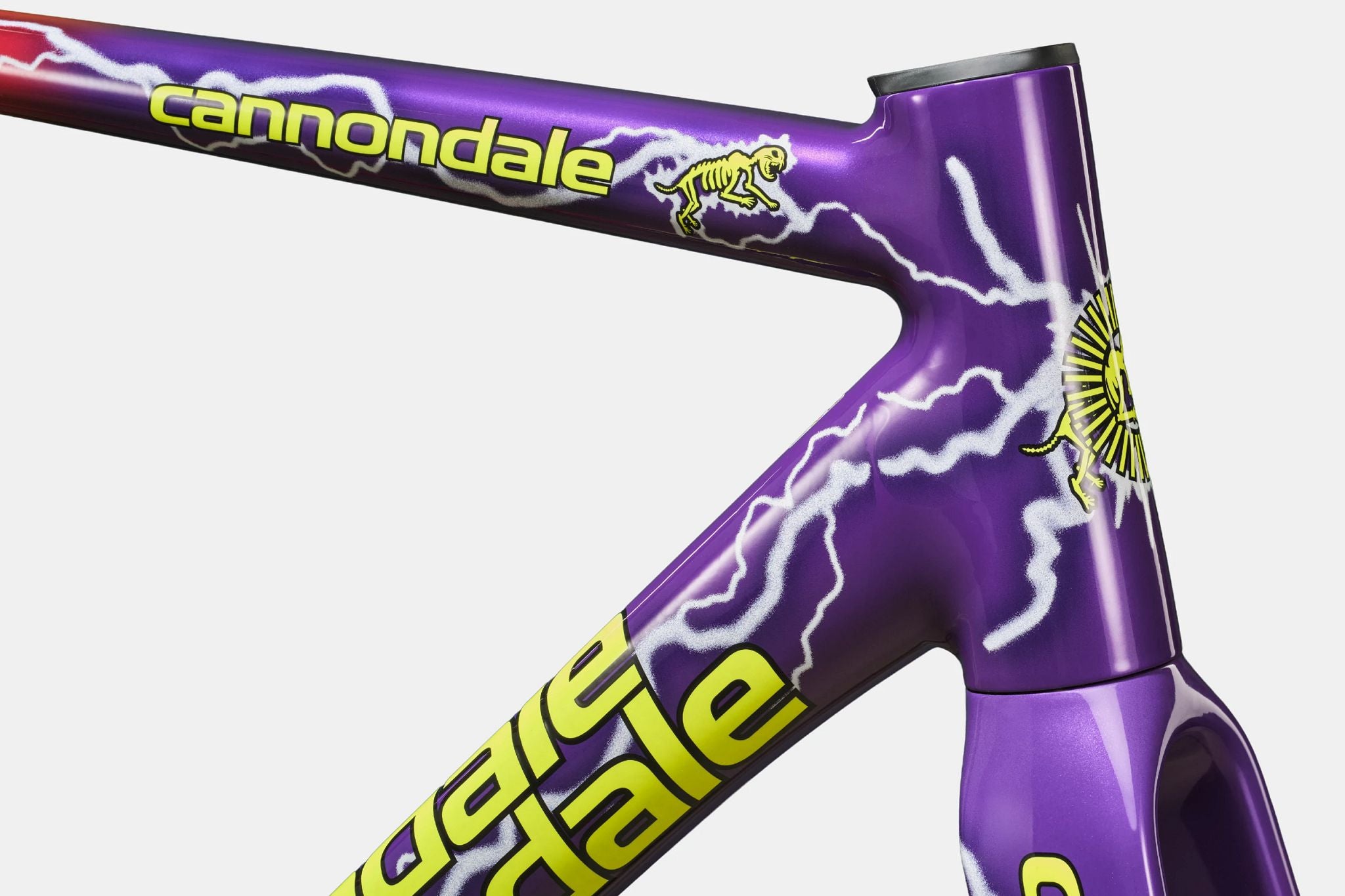

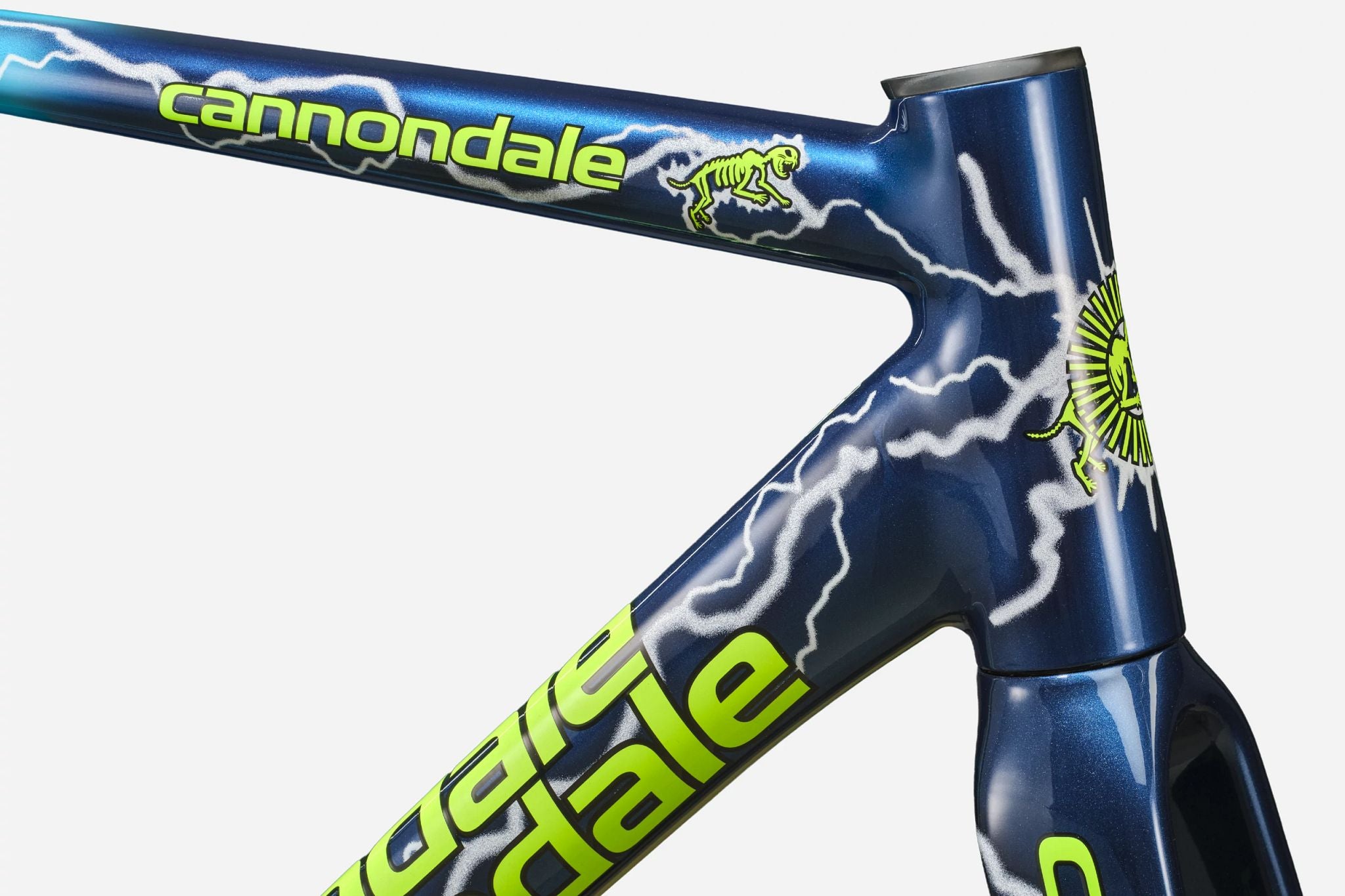

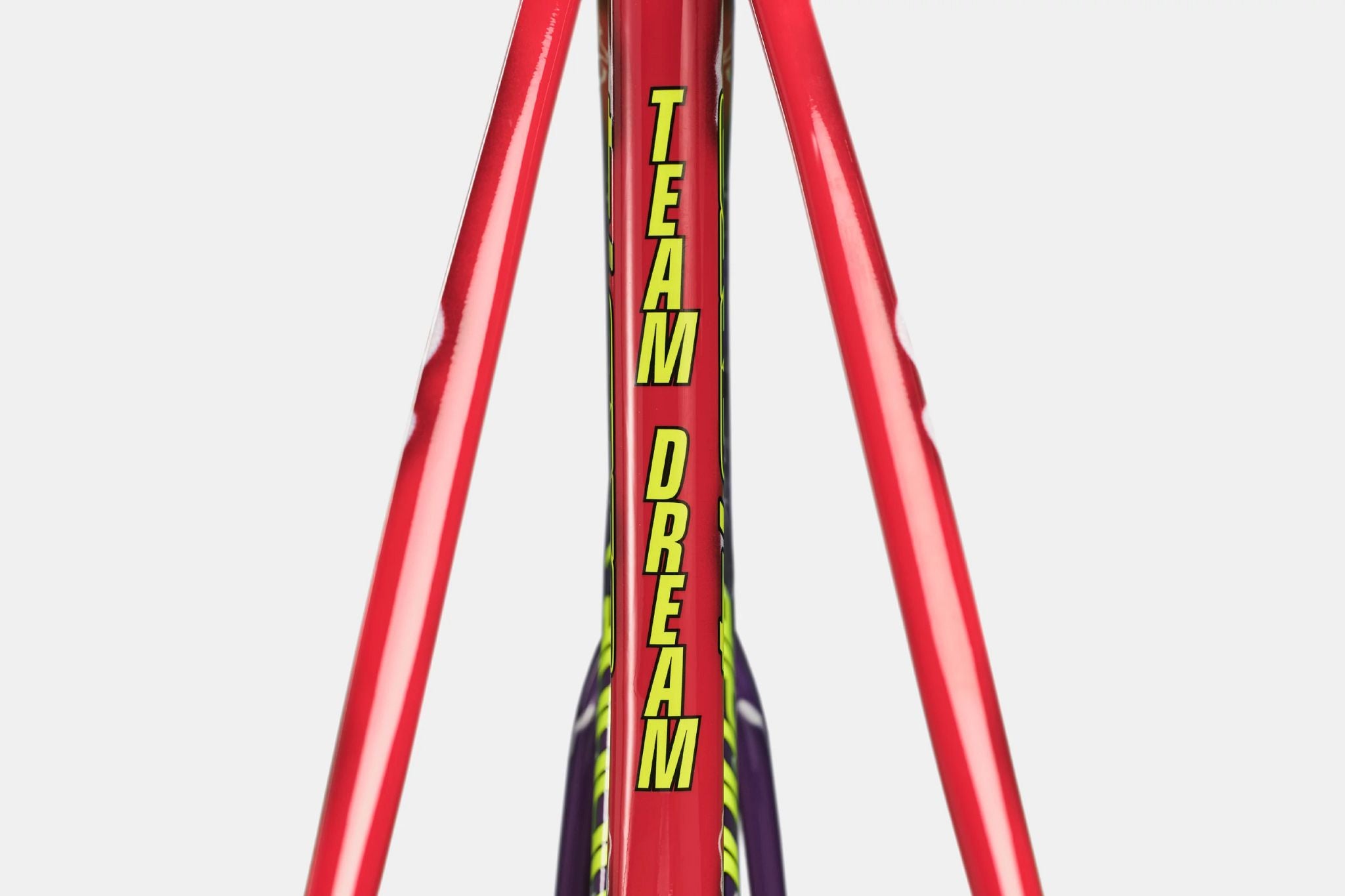

Frame CAAD14, SmartForm C1 Premium Alloy, integrated cable routing, 12x142 thru-axle, BSA 68mm threaded BB, flat mount disc, UDH

Frame material Aluminum

Headset Integrated, 1-1/8" - 1.5"

Platform wheel size 700c

Description

Not Carbon. Not Sorry.

A lineage of fast aluminum shaped over decades—smooth welds, clean geometry, road-true handling. CAAD14 is built for the pure feel of road riding: the pull, the side-glance, the shoulder-to-shoulder sprint, the arms-up finish.

Highlights
- 100 total framesets worldwide: 50 Red, 50 Blue
- Each frameset individually numbered from 1 to 50
- Includes exclusive Cannonade x Team Dream kit
- SmartForm C1 Premium Alloy CAAD14 frame with BSA bottom bracket and UDH
- SAVE Carbon seatpost to help take the sting out of rougher roads

Each frameset bundle purchase includes one (1) Team Dream Kit Access Code.
Retailers will receive physical Team Dream Kit Access Code Cards to distribute

Geometry Chart

Measurement	48cm · 700c	51cm · 700c	54cm · 700c	56cm · 700c	58cm · 700c	61cm · 700c
Reach (mm)	377	381	386	392	398	407
Stack (mm)	505	520	540	560	580	610
Head Tube Angle (°)	71.2	71.2	71.2	73.0	73.0	73.0
Seat Tube Angle (°)	74.1	73.7	73.3	72.9	72.5	72.1
Wheelbase (mm)	990	1001	1012	998	1011	1029
Chainstay Length (mm)	415	415	415	415	415	415
Head Tube Length (mm)	98	117	138	151	172	203
Seat Tube Length (mm)	490	525	555	580	600	620
BB Drop (mm)	74	72	72	69	69	69
BB Height (mm)	268	271	271	273	273	273
Rake (mm)	56	56	56	45	45	45
Trail (mm)	58	58	58	58	58	58
Axle to Crown (mm)	376	376	376	376	376	376
Front Center (mm)	587	596	608	593	605	623
Standover Height (mm)	732	761	785	809	828	851

Part Numbers

Size	Team Dream Blue	Team Dream Red
48cm	SKUCAN35164562K VPNC12085U1051 UPC196870084957 MPNC12085U1051	SKUC1305GU2048 UPC196870264465
51cm	SKUCAN35164562K VPNC12085U1051 UPC196870084957 MPNC12085U1051	SKUC1305GU2051 UPC196870264472
54cm	SKUCAN35274971K VPNC12085U1054 UPC196870084964 MPNC12085U1054	SKUC1305GU2054 UPC196870264489
56cm	SKUCAN35408740K VPNC12085U1056 UPC196870084971 MPNC12085U1056	SKUCAN434194016 UPC196870264496
58cm	SKUCAN35521930K VPNC12085U1058 UPC196870084988 MPNC12085U1058	SKUC1305GU2058 UPC196870264502
61cm	SKUCAN35435930K VPNC12085U1061 UPC196870084995 MPNC12085U1061	SKUC1305GU2061 UPC196870264519
