Park Tool

CWP-7

CWP-7

$29.99
$29.99
Shipping calculated at checkout.

PAR19383747R

Ask a question

The fields marked * are required.

Description

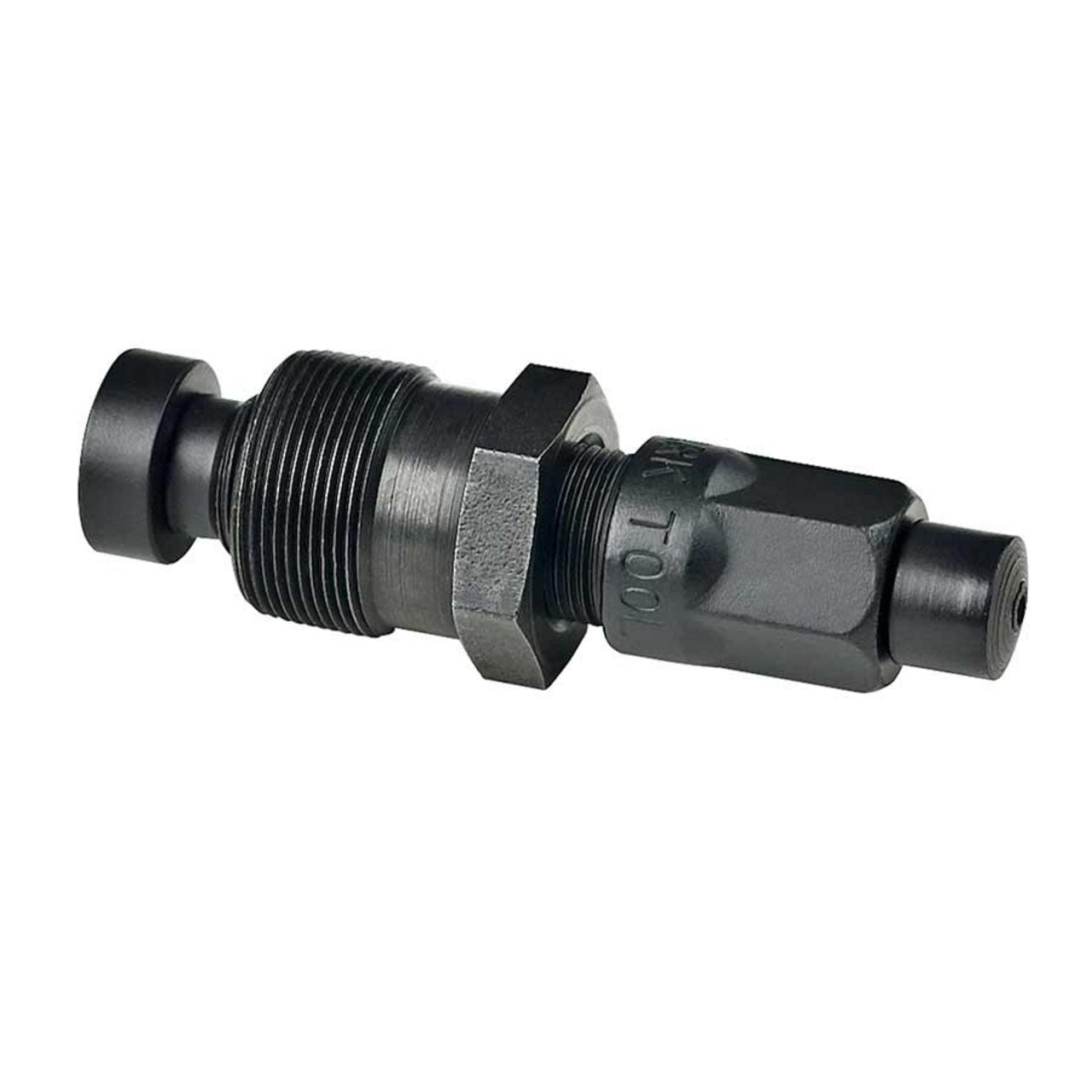

The CWP-7 is a universal tool for removing both square taper and splined crank arms from 3-piece bicycle crank systems. The swappable rotating tip smoothly and securely presses the crank arm away from the bottom bracket spindle. The extra fine threads provide the needed leverage to remove even the tightest cranks. The CWP-7 requires the use of an adjustable wrench

  • Built-in 8mm hex for removing crank bolts
  • Includes 2 rotating tips (11.3mm and 16.3mm) to remove Ocatlink and ISIS Drive crank arms, and tapered-holed crank arms

    • SMALL SWIVEL FOOT

      Compatible with systems that use an M8 x 1.0 threaded crank bolt, including: Square taper SRAM® PowerSpline® BNI cranks for Bosch® e-bike systems


    LARGE SWIVEL FOOT

      Compatible with systems that use an M12 x 1.0 or M15 x 1.0 threaded crank bolt, including: Shimano® Octalink® ISIS Drive ISIS Overdrive systems


    NOTE

      The CWP-7 is designed for crank arms with M22 x 1.0 extractor threads. Crank arms found on some fitness equipment use nonstandard extractor threads and are not compatible with Park Tool crank pullers. Check with the equipment manufacturer for tool recommendations.

    SMALL SWIVEL FOOT

    Compatible with systems that use an M8 x 1.0 threaded crank bolt, including: Square taper SRAM® PowerSpline® BNI cranks for Bosch® e-bike systems

    LARGE SWIVEL FOOT

    Compatible with systems that use an M12 x 1.0 or M15 x 1.0 threaded crank bolt, including: Shimano® Octalink® ISIS Drive ISIS Overdrive systems

    NOTE

    The CWP-7 is designed for crank arms with M22 x 1.0 extractor threads. Crank arms found on some fitness equipment use nonstandard extractor threads and are not compatible with Park Tool crank pullers. Check with the equipment manufacturer for tool recommendations.
