FOX Fork Volume Spacers

Dial in your fork progression using these easy-to-install volume spacers.

What Are Volume Spacers?

Volume spacers (aka “tokens”) are little pieces that go inside the fork’s air spring to change how the fork ramps up. More tokens = more mid-stroke support and more bottom-out resistance (a steeper “ramp”). Fewer tokens = less ramp-up, so it’s easier to use all the travel.

Bottoming Out Too Easily?

If your sag is set correctly and you’re blowing through the travel or bottoming out too easily, add a token (or swap to a larger spacer) to increase bottom-out support.

Not Getting Full Travel?

If your sag is set correctly and you’re not getting full travel even on big hits, remove a token (or use a smaller spacer) to make the fork use more of its travel.

Each volume spacer unit adjusts the air spring volume by the following amount:

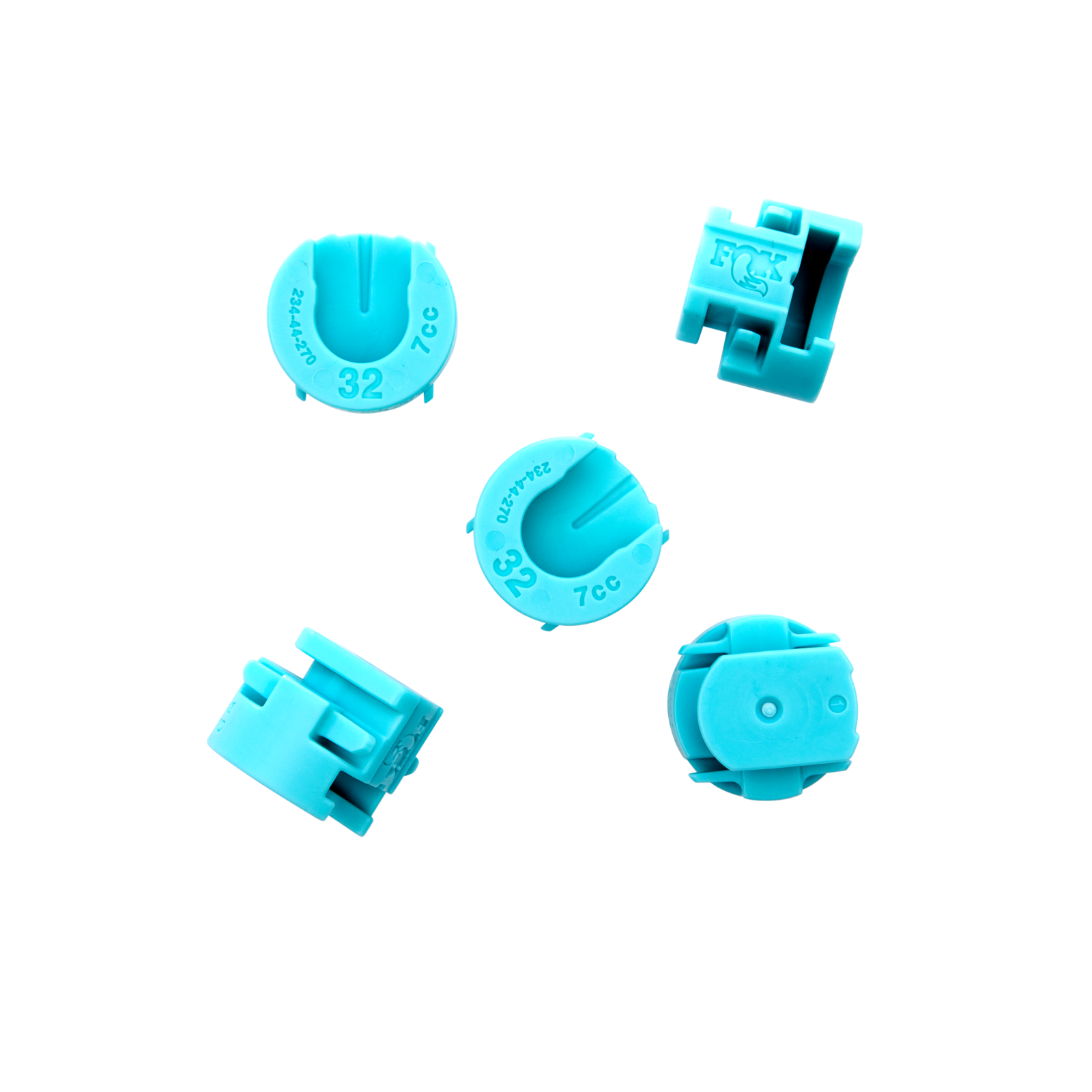

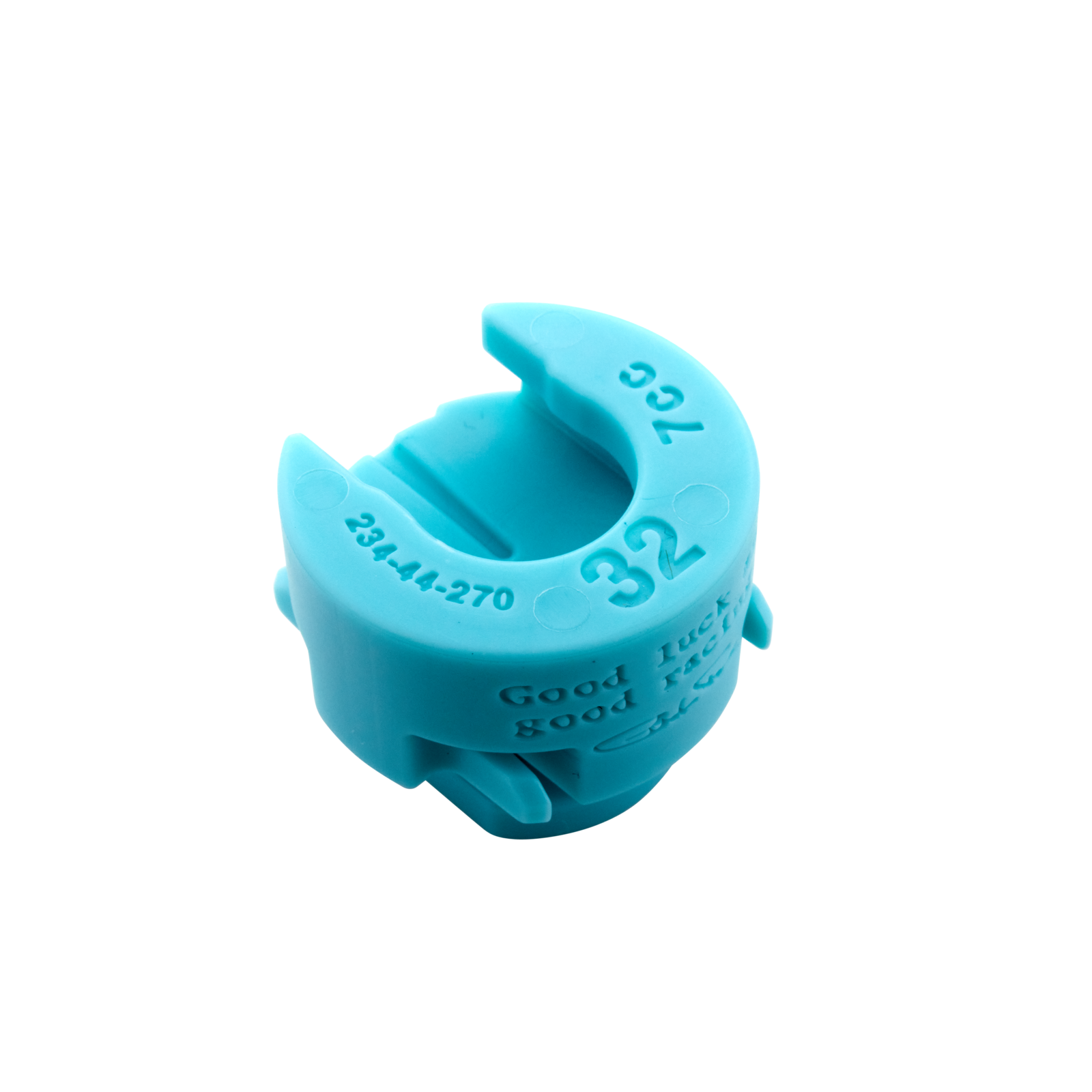

• 32 TC: 7cc

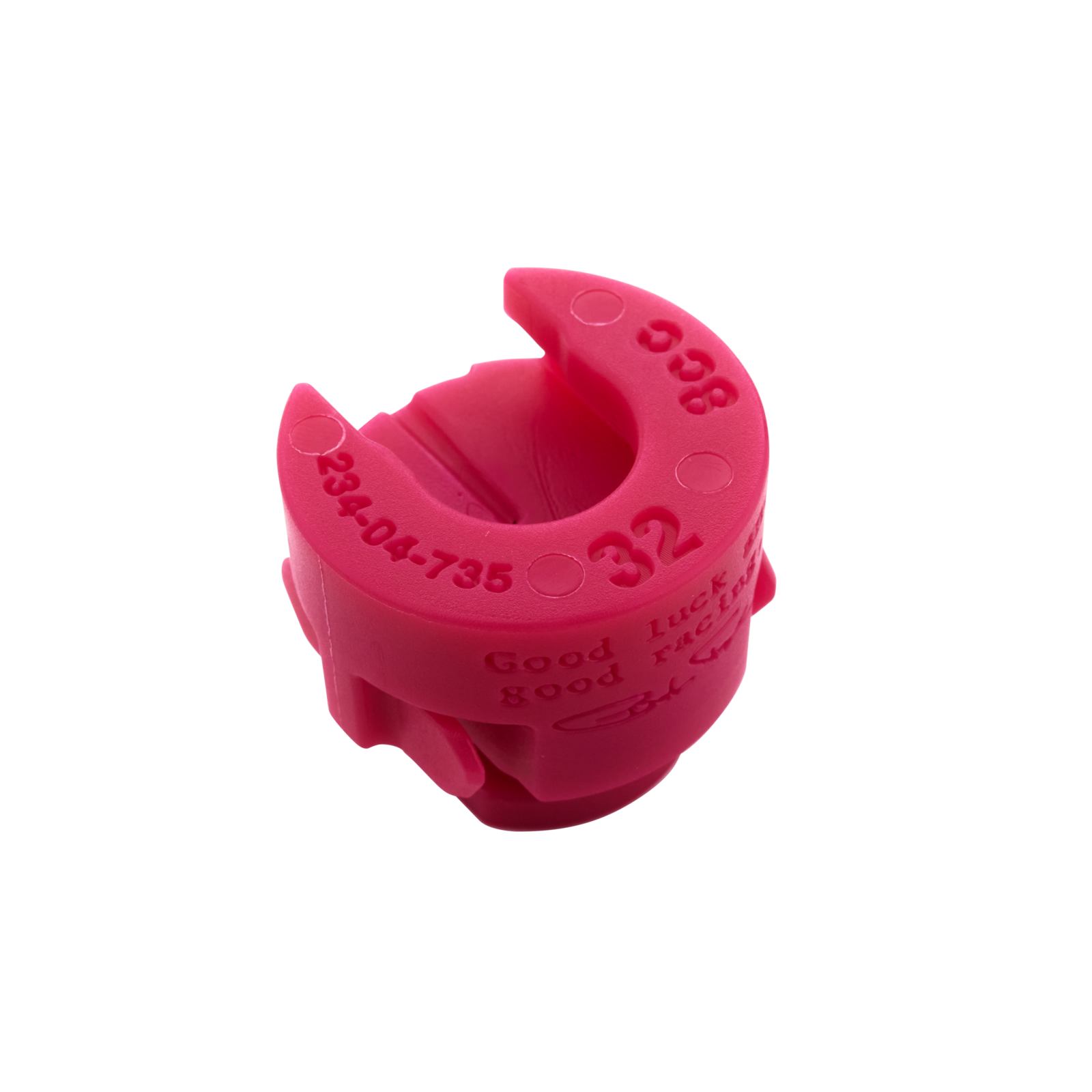

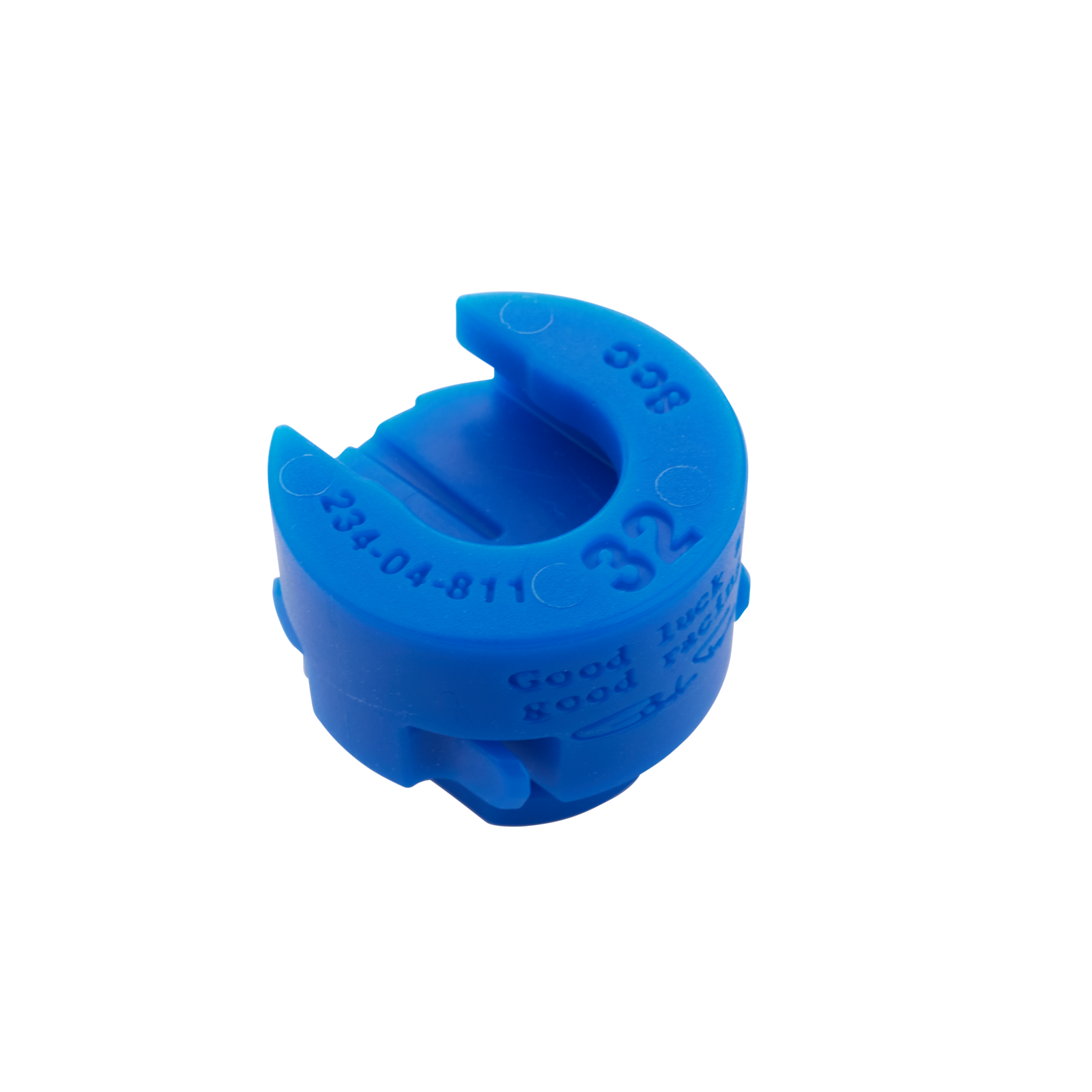

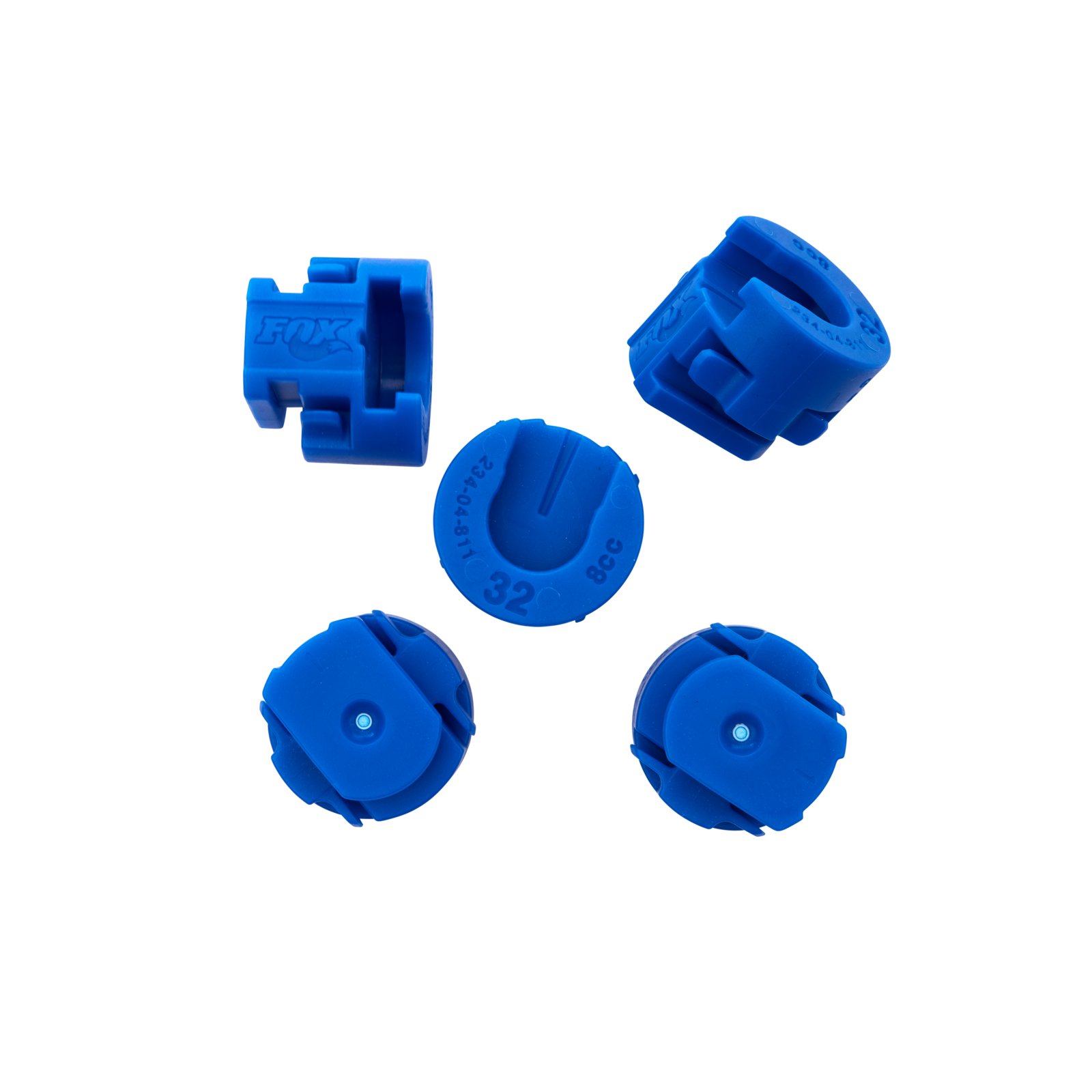

• 32: 8cc

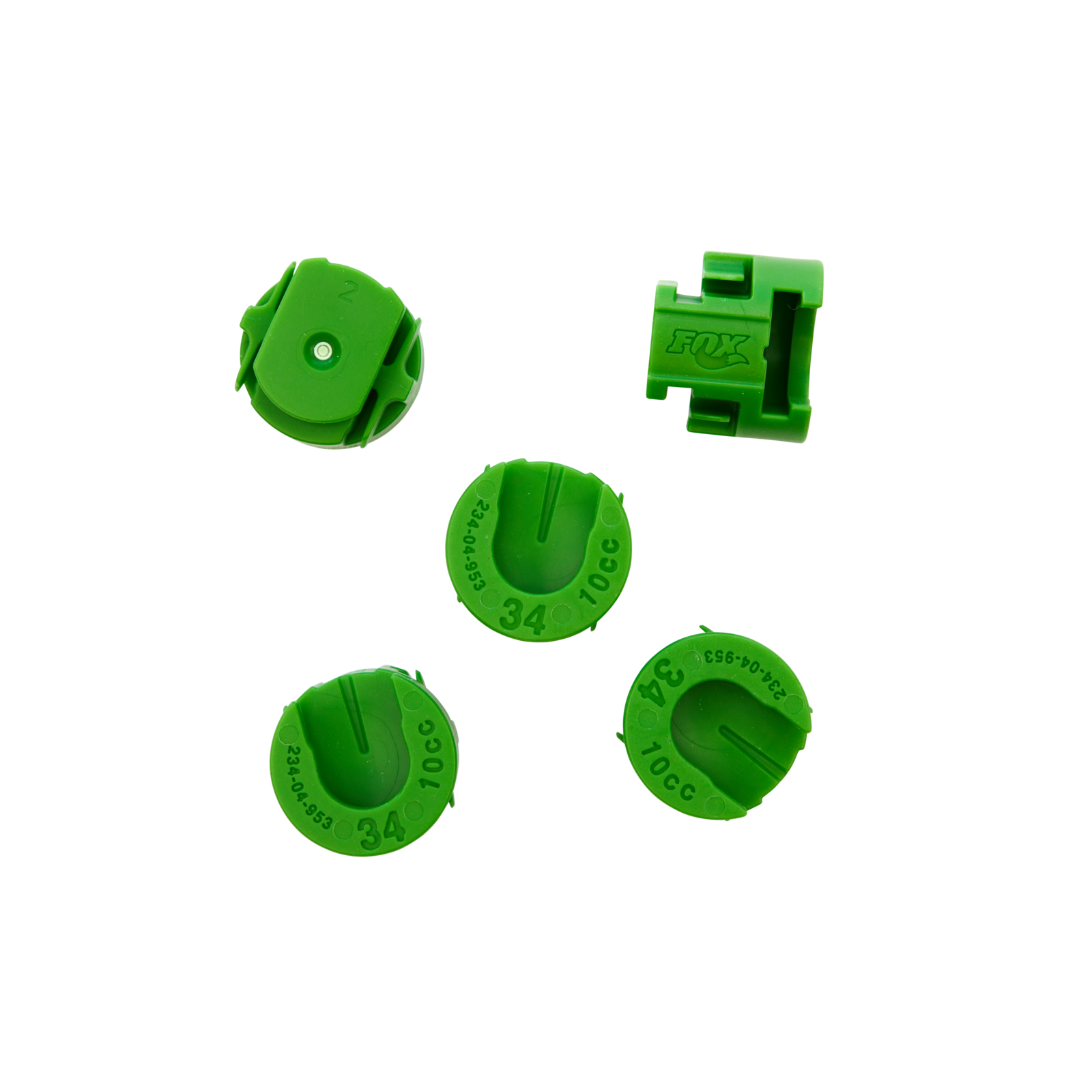

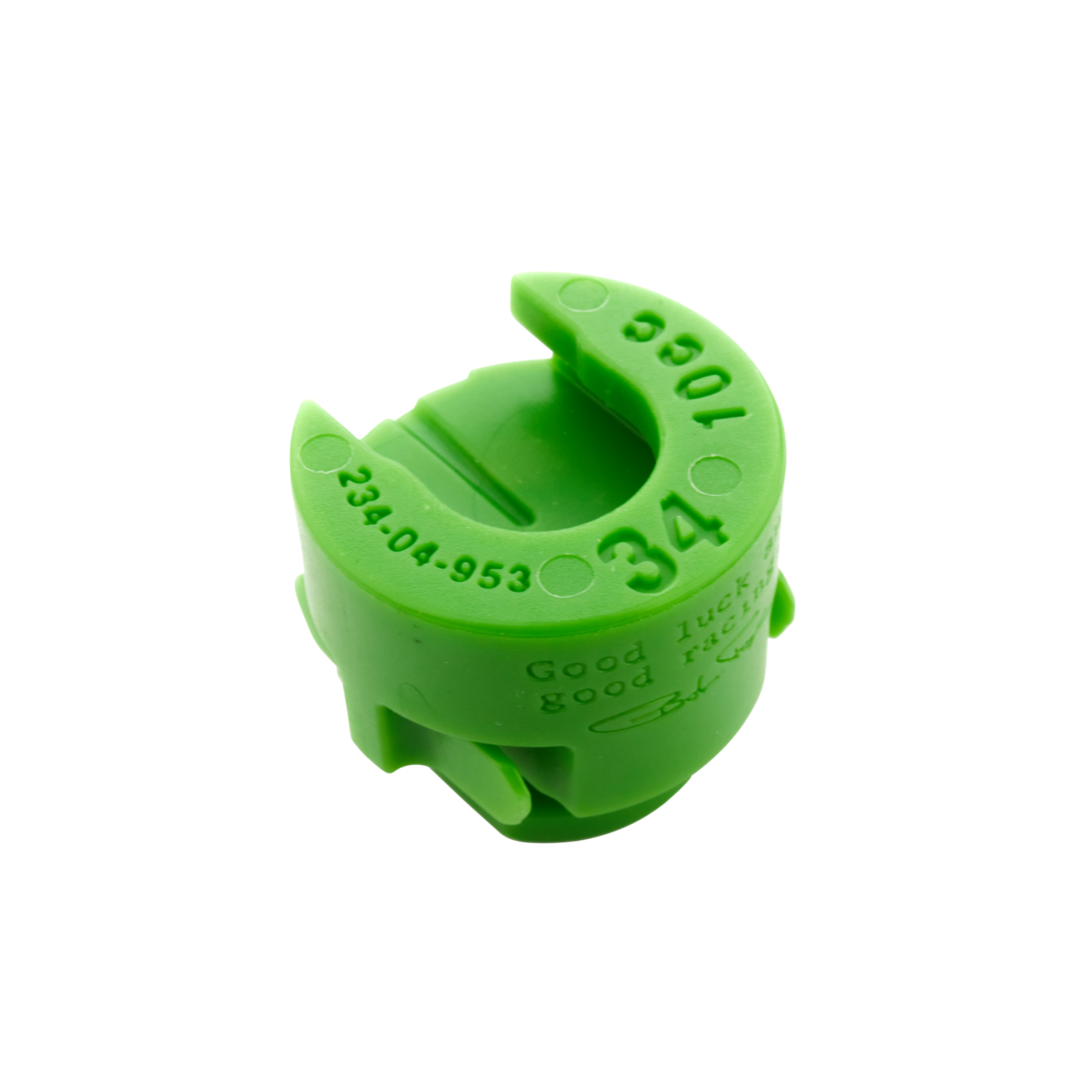

• 34: 10cc

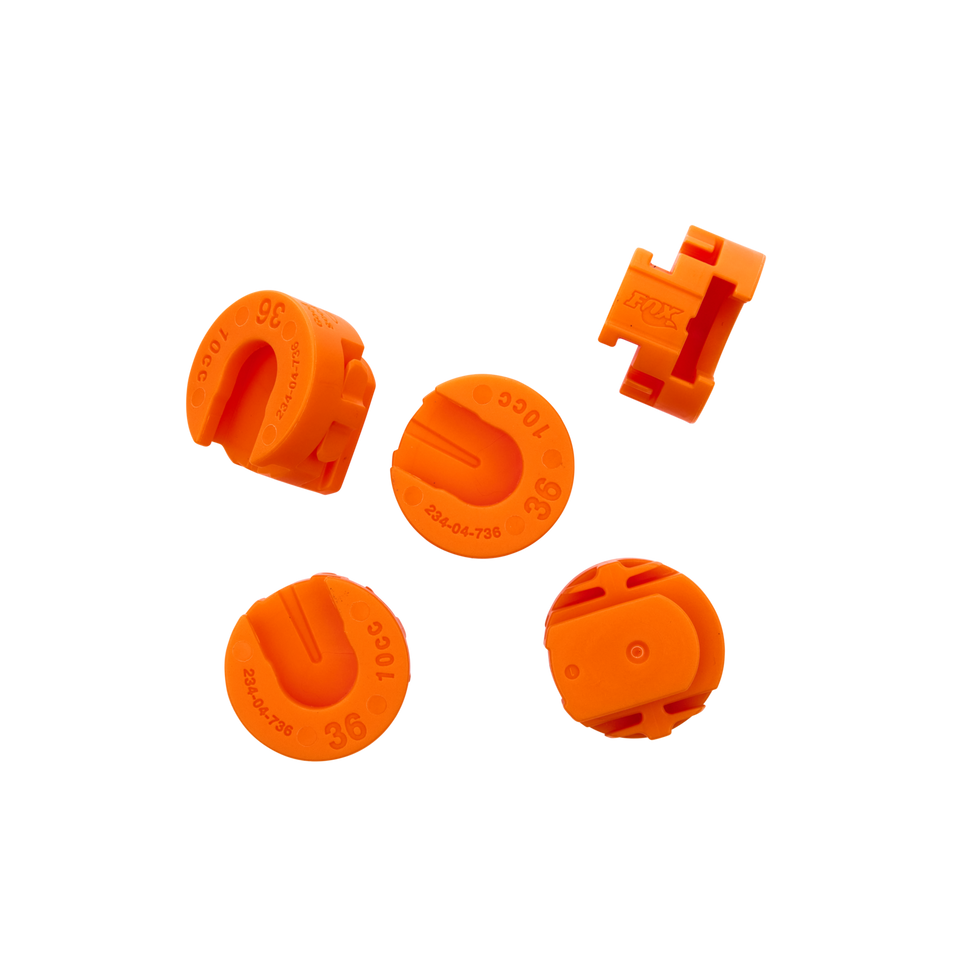

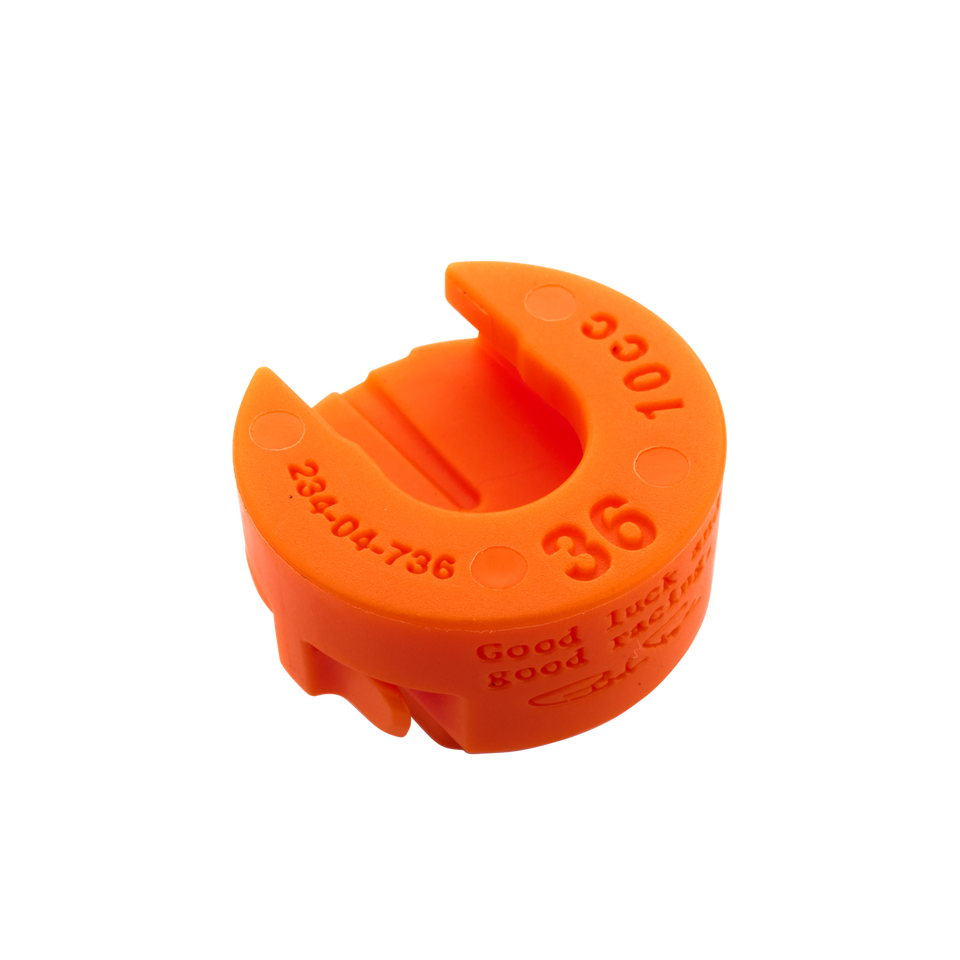

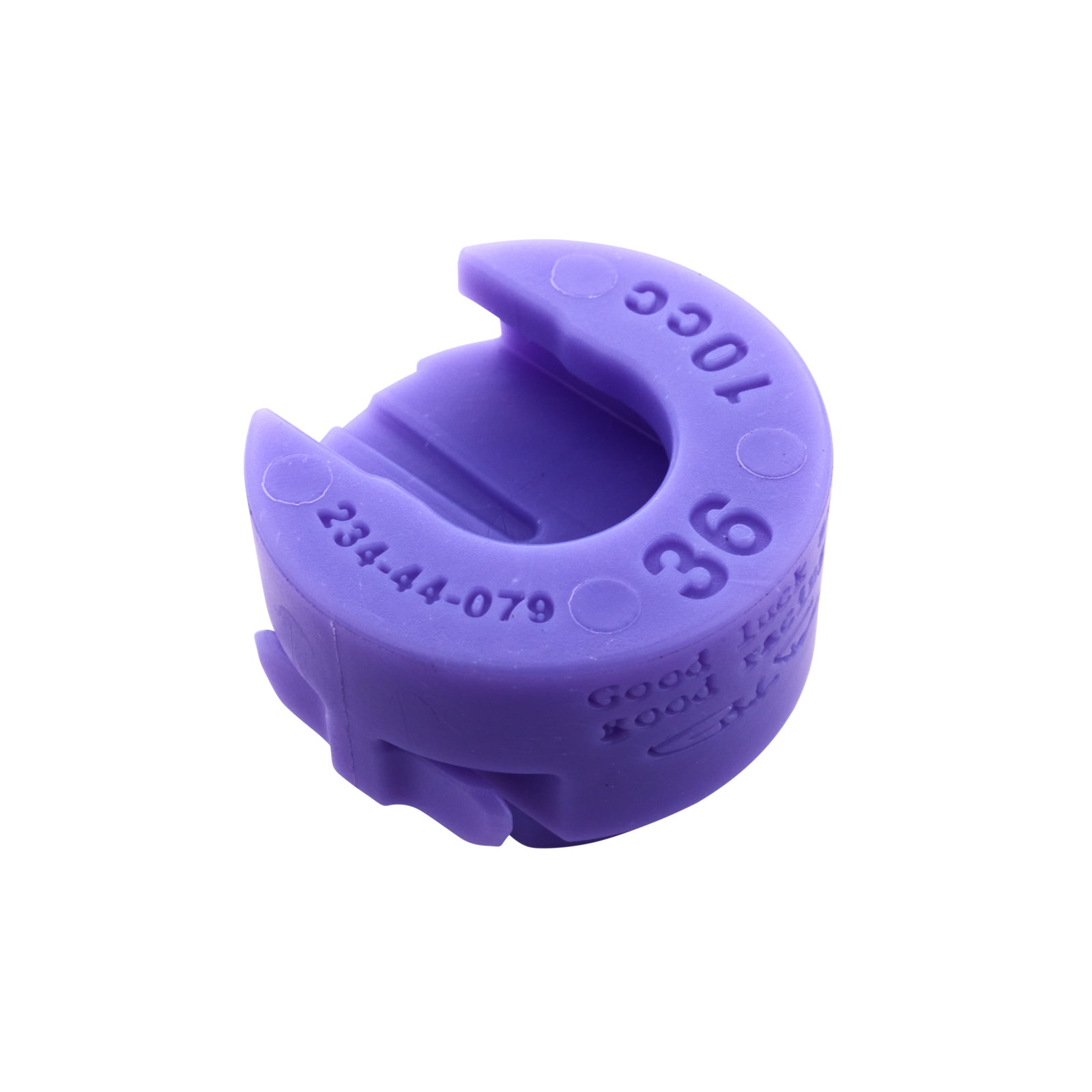

• 36: 10cc

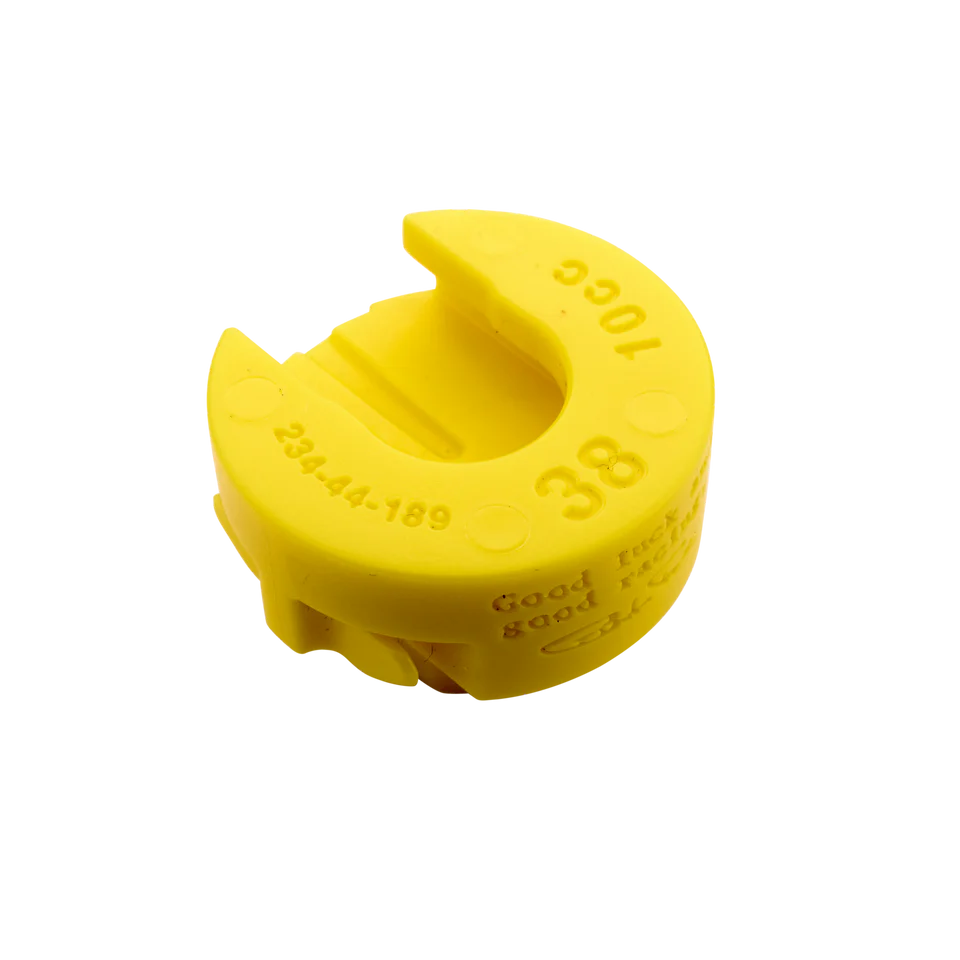

• 38: 10cc

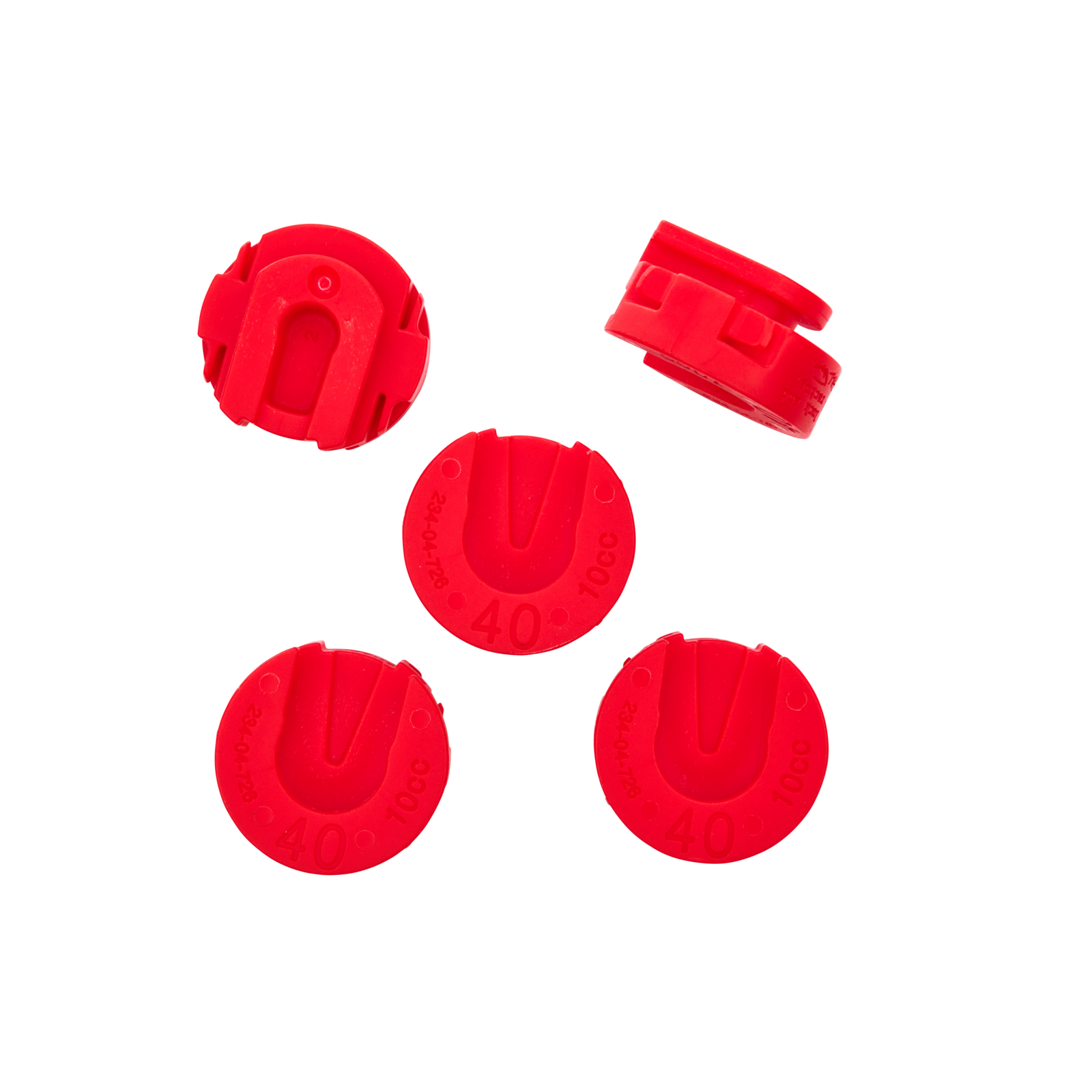

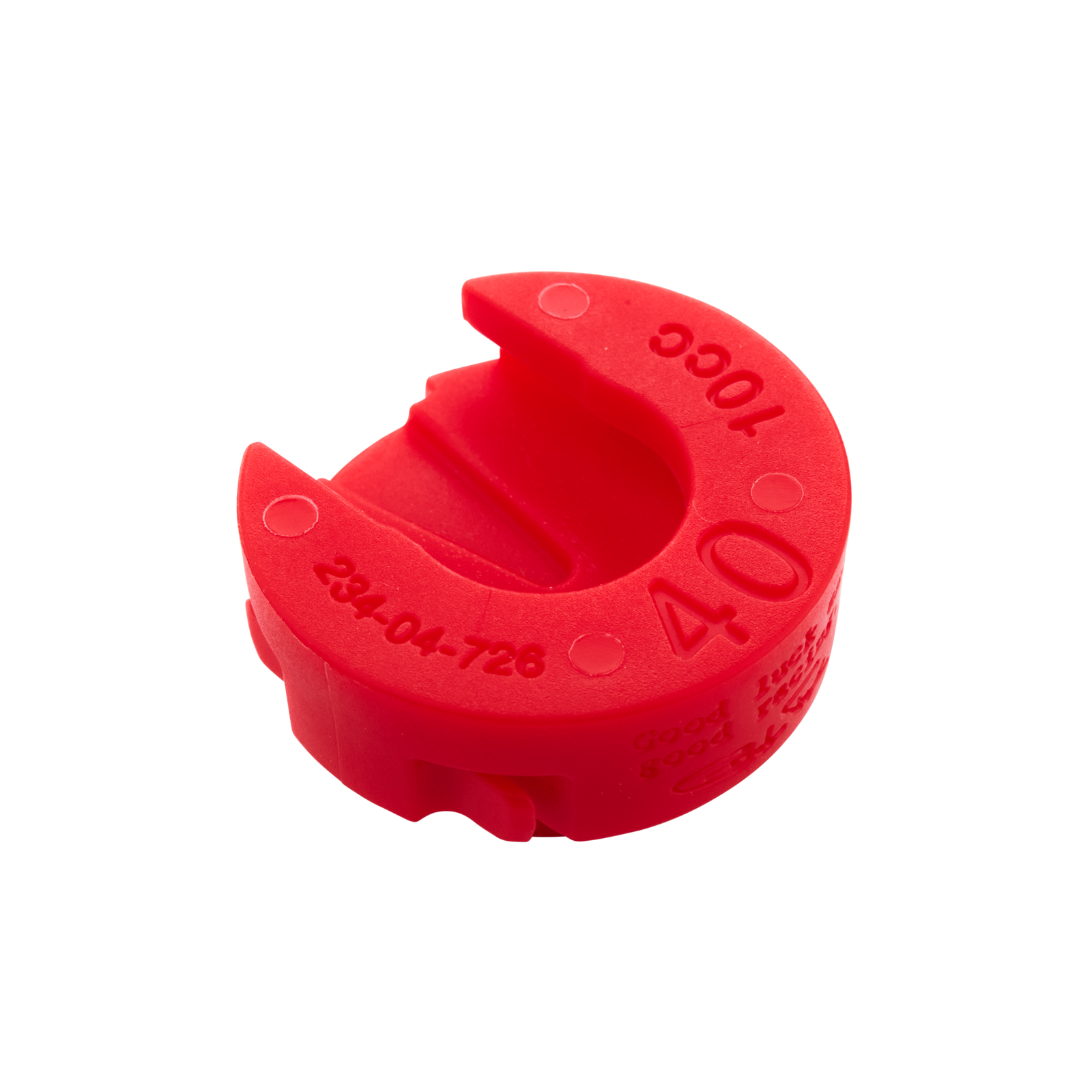

• 40: 10cc
• Podium: 7cc
