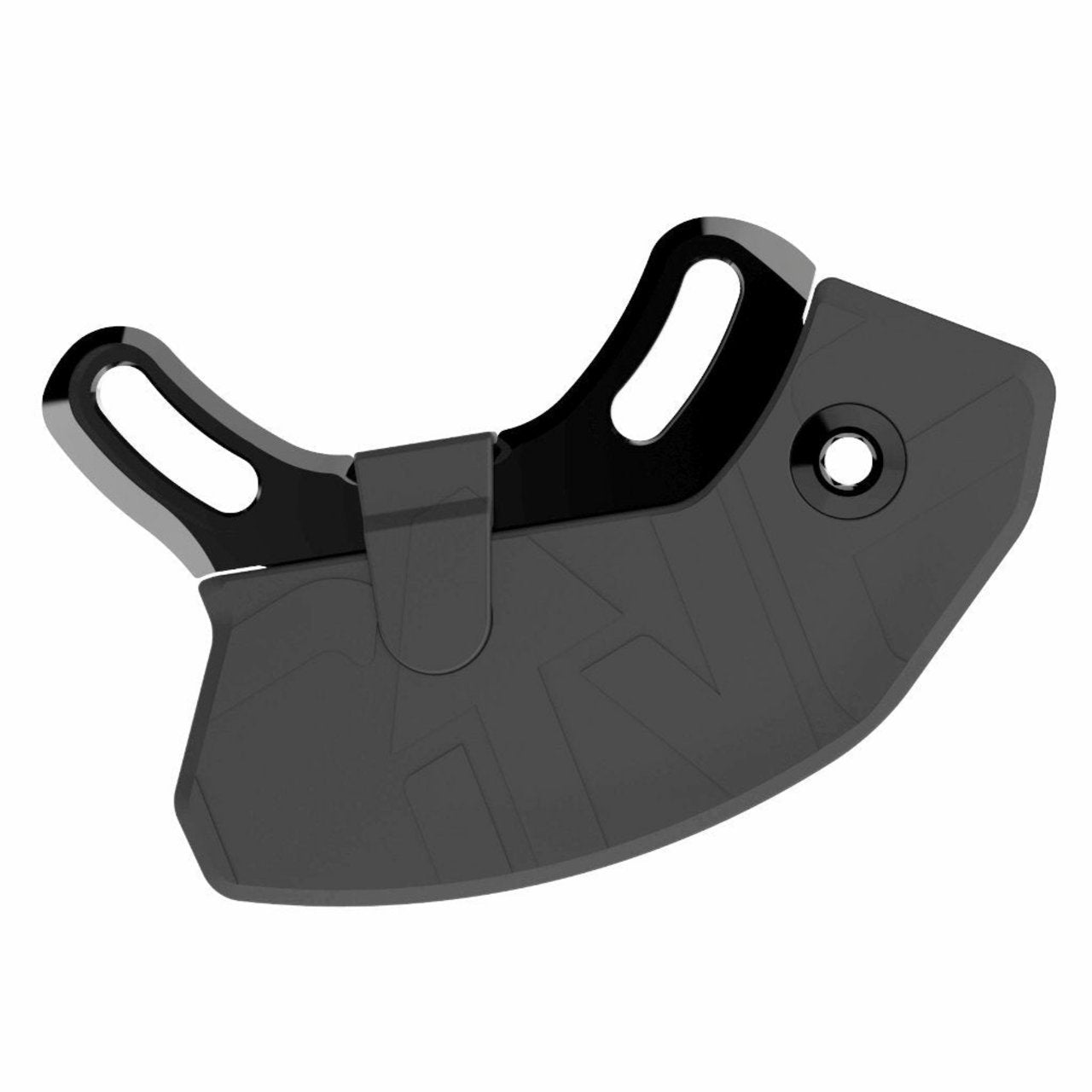

ISCG05 Underbash

Features
• Install without removing your crank
• Single tool install and adjustment
• Boost compatible
• Oval Compatible
• Stainless Steel hardware
Includes 3 bash plates (28-30T, 32-34T, 36T)

Underbash Setup Instructions
1. Hold backplate directly against ISCG05 tabs. Check for clearance between the back side of the bashplate and the bike frame (use included 2.5mm spacers if necessary to space the backplate away from the frame).
2. Rotate backplate to desired location and torque bolts to 5Nm

Bash Replacement Instructions
1. Remove Underbash from bike
2. Remove bolt retaining clip from rear bash plate bolt by pushing a 4mm hex through the bolt from the backside of the Underbash.
3. Remove Bash bolts using a 5mm hex
4. Select desired bash plate and reinstall bash bolts to 6Nm
5. Reinstall bolt retaining clip on the rear bash plate bolt
6. Reinstall Underbash onto bike
