Pivot Cycles

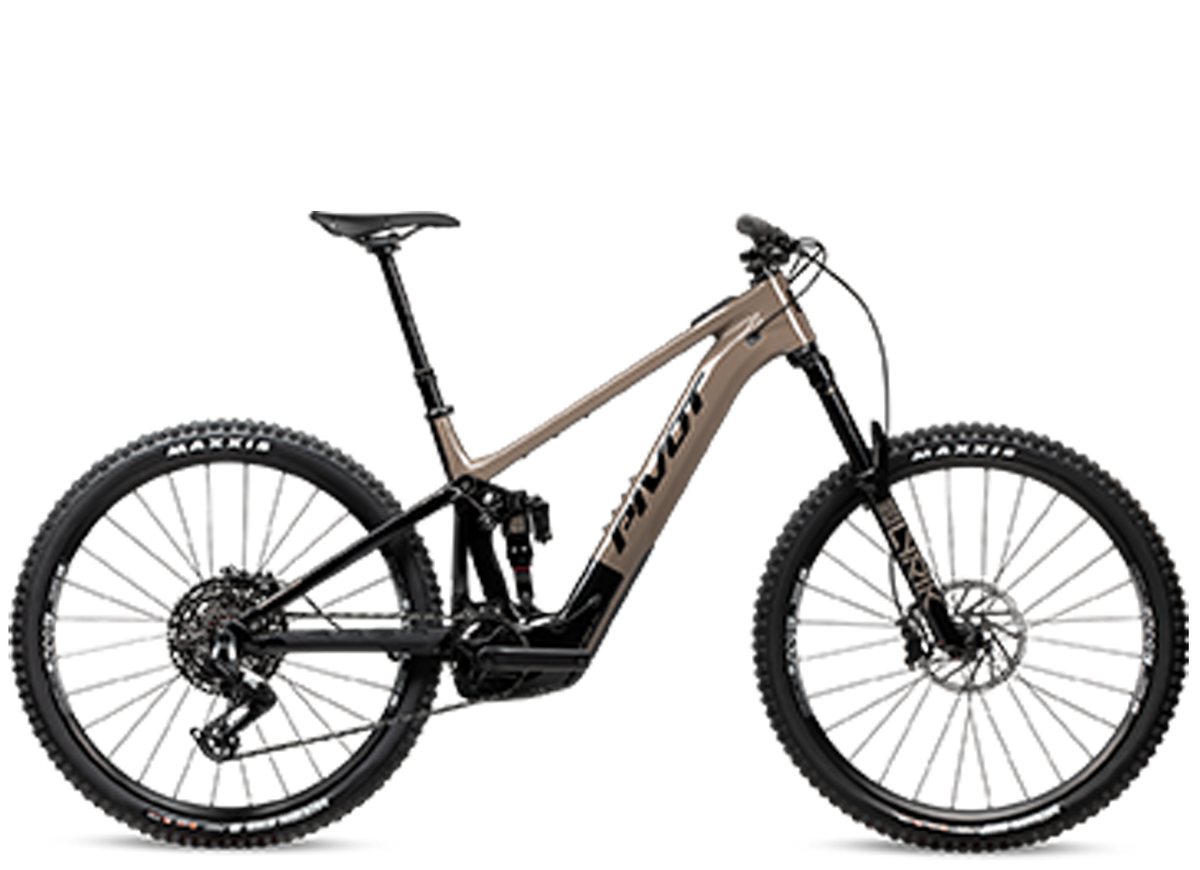

Shuttle AM Ride E70/90
Shuttle AM Ride E70/90
SKU:PIV358600379
Couldn't load pickup availability
Why Buy a Bike From The Bike Shop?
Why Buy a Bike From The Bike Shop?
15% off Parts & Accessories
When you buy a bike at The Bike Shop, you get 15% off of parts and accessories for the first 30 days following your bike purchase. The discount will automatically apply in the checkout at the time of purchase with your bike. This excludes items already marked down and some brands.
Service Plan
If you're local to Calgary or Canmore, you also get one complimentary complete tune-up within the first 16 months of owning the bike. Also included is a lifetime of unlimited service checks to keep you informed on the overall condition of your bike.
After Purchase Support
You're not on your own after you buy a bike from us. We have a dedicated e-comm team that is here to assist if you need help with anything. We also created video tutorials on how to unbox your bike when it arrives and get it ready to read.
Shipping & Returns
Shipping & Returns
We care about your bike. We understand the excitement of unboxing a brand new bike and make sure you get the best experience when receiving your new bike.
Canadian shipping charges:
- Sale bikes: $200
- Standard pedal bikes over $1250: Free
- Standard pedal bikes under $1250: $100
- Electric bikes: $200
- Fat bikes: $200
- Kid's bikes: $60
Insurance charge: 1.5% insured value
We are currently offering gift cards to partially offset the price of shipping a bike! Visit our shipping page for more details
Cargo bikes:
Due to the size of the box that cargo bikes ship in, we are unable to ship cargo bikes directly to your address. Cargo bikes are shipped to a Manitoulin Depot for you to pick-up. For more detail, visit our shipping page.
Bike Specifications
Bike Specifications
Specifications are subject to change without notice
Drivetrain
Brakes
Cockpit
Wheels
Suspension
Frame
E-Bike System
Share this product
Description
Description
- Ultra-Light hollow core carbon frame
- Featuring Bosch's Gen 5 Performance Line CX (Ride) and CX Race motors (Pro & Team)
- Long-range 800Wh battery on all build levels
- Bosch 250wh PowerMore range extender compatible
- Kiox 400C display (Pro & Team)
- Wheel mounted speed sensor
- Wireless Bosch remote
- 160mm fork
- Flip chip upper link mount
- Mixed wheel compatible
- Pivot Dock Tool system compatible
- Water bottle clearance on all sizes
- 150mm of progressive rear travel
- Injection molded rubberized frame protection
- Full internal routing with Pivot cable port system
Geometry Chart
Geometry Chart
| Measurement |
SM
High
· 29"
|
SM
Low
· 29"
|
MD
High
· 29"
|
MD
Low
· 29"
|
LG
High
· 29"
|
LG
Low
· 29"
|
XL
High
· 29"
|
XL
Low
· 29"
|
|---|---|---|---|---|---|---|---|---|
| Reach (mm) | 435 | 431 | 465 | 461 | 480 | 476 | 500 | 496 |
| Stack (mm) | 629 | 632 | 638 | 642 | 647 | 651 | 656 | 660 |
| Head Tube Angle (°) | 64.5 | 64.1 | 64.5 | 64.1 | 64.5 | 64.1 | 64.5 | 64.1 |
| Seat Tube Angle (°) | 76.9 | 76.5 | 76.9 | 76.5 | 76.9 | 76.5 | 76.9 | 76.5 |
| Wheelbase (mm) | 1216 | 1217 | 1250 | 1251 | 1269 | 1270 | 1294 | 1295 |
| Chainstay Length (mm) | 444 | 444 | 444 | 444 | 444 | 444 | 444 | 444 |
| Head Tube Length (mm) | 110 | 110 | 120 | 120 | 130 | 130 | 140 | 140 |
| Seat Tube Length (mm) | 378 | 378 | 399 | 399 | 432 | 432 | 470 | 470 |
| BB Drop (mm) | 24 | 29 | 24 | 29 | 24 | 29 | 24 | 29 |
| BB Height (mm) | 350 | 345 | 350 | 345 | 350 | 345 | 350 | 345 |
| Standover Height (mm) | 720 | 715 | 720 | 715 | 720 | 715 | 720 | 715 |
Part Numbers
Part Numbers
| Size | Badlands Brown |
|---|---|
| X-Small |
—
|
| Small |
—
|
| Medium |
SKUPIV358600379
VPNBRNMDDRPWNSA1-C
MPNBRNMDDRPWNSA1-C
|
| Large |
SKUPIV408614879
VPNBRNLGDRPWNSA1-C
MPNBRNLGDRPWNSA1-C
|
| X-Large |
—
|
Size Chart
Size Chart
| Size | Rider height (in) | Rider height (cm) |
|---|---|---|
| Small | 5'3"-5'8" | 160-173cm |
| Medium | 5'7"-6" | 170-183cm |
| Large | 5'10"-6'2" | 178-188cm |
| X-Large | 6'1"+ | 185cm + |
